SANT CS-11 Cast Steel Ball Valve – Flanged, Class 150 (IBR Approved) The SANT CS-11 Cast Steel Ball Valve is a high-performance three-piece, lever-operated ball valve designed for industrial flow isolation. It features a cast carbon steel ASTM A216 Gr. WCB body, stainless-steel ball and stem, renewable PTFE/RPTFE seating, and ANSI B16.5 Class 150 raised-face flanged ends. SANT specifies the CS-11 for water, oil, gas and steam applications. The valve is manufactured to BS 5351 / API 6D, with Class 150 pressure rating and a maximum working temperature of 250°C. It is also listed by SANT as IBR Approved, with an IBR Form III-C test certificate furnished with every supply. SANT CS-11 Cast Steel Ball Valve Specifications Specification Details Brand SANT Model CS-11 Product Cast Steel Ball Valve Standard BS 5351 / API 6D Pressure Class Class 150 Pattern Straight Type Design Three Piece Operation Lever Operated Body Material Cast Carbon Steel ASTM A216 Gr. WCB Ball Material SS ASTM A351 Gr. CF8 / AISI-304 Stem Material SS ASTM A276 Type 410 Seat Renewable PTFE / RPTFE Gland Packing PTFE End Connection Flanged Flange Standard ANSI B16.5 Class 150 R.F. Body Test 30 bar g / 435 psig Hydraulic Seat Test 22 bar g / 320 psig Hydraulic Air Seat Test 6.9 bar g / 100 psig Maximum Working Temperature 250°C HSN Code 84818030 Certification IBR Approved IBR Certificate Form III-C furnished with supply Specifications are based on SANT's current CS-11 product documentation. Available Sizes SANT CS-11 is available in: 25 mm / 1 inch 40 mm / 1½ inch 50 mm / 2 inch 65 mm / 2½ inch 80 mm / 3 inch 100 mm / 4 inch SANT notes that actual dimensions may change as part of ongoing design improvements, so dimensions should be confirmed before ordering. Key Features of SANT CS-11 Class 150 cast steel ball valve IBR Approved Three-piece construction Lever-operated quarter-turn design ASTM A216 Gr. WCB cast steel body SS CF8 / AISI-304 ball AISI-410 stainless-steel stem Renewable PTFE/RPTFE seat ANSI B16.5 Class 150 raised-face flanged ends Suitable for high-reliability industrial flow isolation Maximum working temperature up to 250°C IBR Form III-C test certificate supplied with every supply according to SANT documentation. Applications The SANT CS-11 Cast Steel Ball Valve is suitable for: Steam lines Oil pipelines Gas lines Water pipelines Industrial process piping Power plant applications Boiler and steam-system applications General industrial flow isolation SANT officially lists Water, Oil, Gas and Steam as applications for CS-11. SANT CS-11 Ball Valve Dealer & Supplier in Delhi NCR NAMOKAR ENTERPRISES supplies industrial valves and SANT valve products for customers in Delhi NCR and across India. If you are looking for a SANT CS-11 Cast Steel Ball Valve Class 150, Flanged, IBR Approved, NAMOKAR ENTERPRISES can assist with product availability, required valve size, technical specifications and quotation. Why Choose NAMOKAR ENTERPRISES? SANT industrial valve range Industrial valve supplier in Delhi NCR Cast steel ball valve supply IBR valve requirements Multiple valve sizes B2B and industrial requirements Bulk and project enquiries Supply support across India Frequently Asked Questions 1. What is SANT CS-11? SANT CS-11 is a Cast Steel Ball Valve, Flanged, Class 150 and IBR Approved. 2. Is SANT CS-11 IBR approved? Yes. SANT identifies the CS-11 as IBR Approved and states that an IBR Form III-C test certificate is furnished with every supply. 3. What is the body material? The body is made from cast carbon steel ASTM A216 Gr. WCB. 4. What is the pressure class? The CS-11 is rated Class 150. 5. What type of end connection is used? The valve has ANSI B16.5 Class 150 R.F. flanged ends. 6. What is the maximum working temperature? The specified maximum working temperature is 250°C. 7. What materials are used for the ball and stem? The ball is SS CF8 / AISI-304, while the stem is AISI-410 stainless steel. 8. What industries use CS-11? It can be used in water, oil, gas and steam services, including industrial and power-related piping applications. 9. What sizes are available? The listed range is 1 inch to 4 inches: 25, 40, 50, 65, 80 and 100 mm. 10. Where can I buy SANT CS-11 in Delhi? You can contact NAMOKAR ENTERPRISES for SANT CS-11 availability, specifications and quotation.

SANT CI-17 Cast Iron Ball Valve – Class 125, Screwed (ISI Marked) SANT CI-17 Cast Iron Ball Valve is a straight-pattern, two-piece ball valve designed for reliable flow isolation in water, oil and gas applications. It is manufactured with a cast iron body conforming to IS:210 Gr. FG220, stainless-steel ball and stem, and renewable PTFE seats. The valve has female parallel screwed ends as per IS:554 and is available in sizes from 15 mm to 100 mm (½“ to 4“). Product Specifications Specification Details Brand SANT Model CI-17 Product Cast Iron Ball Valve Standard IS:9890 Class 125 Pattern Straight Design Two Piece Body Material Cast Iron IS:210 Gr. FG220 Ball SS AISI-304 Stem / Spindle SS AISI-410 Seat Renewable PTFE / Teflon Gland Packing Teflon Rings End Connection Screwed Female Parallel Thread Standard IS:554 Body Test Pressure 300 Psig Hydraulic Seat Test Pressure 220 Psig Hydraulic / 100 Psig Air HSN Code 84818030 Marking ISI Marked These specifications are based on SANT Valves' official CI-17 product information. Available Sizes 15 mm / ½“ 20 mm / ¾“ 25 mm / 1“ 32 mm / 1¼“ 40 mm / 1½“ 50 mm / 2“ 65 mm / 2½“ 80 mm / 3“ 100 mm / 4“ SANT lists the CI-17 in all of these nominal sizes. Key Features Class 125 cast iron ball valve ISI Marked product Two-piece straight-pattern construction Cast iron IS:210 Gr. FG220 body Stainless-steel AISI-304 ball Stainless-steel AISI-410 stem Renewable PTFE/Teflon seats Female parallel screwed ends as per IS:554 Quarter-turn lever operation Suitable for water, oil and gas service Works test certificate supplied with every supply by SANT, according to its product documentation. Applications The SANT CI-17 Cast Iron Ball Valve can be used for: Water supply and distribution Industrial piping systems Oil handling systems Gas service applications Utility pipelines Plumbing and process lines General industrial flow isolation SANT specifically lists water, oil and gas as applications for this model. SANT CI-17 Ball Valve Dealer & Supplier in Delhi NCR NAMOKAR ENTERPRISES supplies SANT Valves in Delhi and serves customers across Delhi NCR and India. The company currently lists SANT Valves among its product categories and promotes itself as a SANT valves dealer/supplier in Delhi. For SANT CI-17 Cast Iron Ball Valve Class 125, Screwed, customers can contact NAMOKAR ENTERPRISES for product availability, size requirements, technical specifications and quotation. Why Choose NAMOKAR ENTERPRISES? SANT valve product range Industrial valve supply in Delhi Multiple valve sizes and configurations B2B supply for industrial and commercial requirements Support for bulk and project requirements Delivery support across Delhi NCR and other Indian locations NAMOKAR ENTERPRISES 📞 08048047905 📧 sales@namokarenterprises.com 📍 Delhi, India 🌐 www.namokarvalves.com FAQs 1. What is SANT CI-17? SANT CI-17 is a Cast Iron Ball Valve, Class 125, Screwed and ISI Marked. 2. What is the body material of CI-17? The body is Cast Iron IS:210 Gr. FG220. 3. What type of connection does CI-17 have? It has female parallel screwed threads according to IS:554. 4. What is the pressure class of SANT CI-17? The product standard is IS:9890 Class 125. 5. What material is used for the ball? The ball is stainless steel AISI-304. 6. What material is used for the stem? The stem is stainless steel AISI-410. 7. What type of seat is provided? The valve uses a renewable PTFE/Teflon seat. 8. What sizes are available? The official range is 15 mm to 100 mm (½“ to 4“). 9. Where is CI-17 used? SANT lists it for water, oil and gas applications. 10. Where can I buy SANT CI-17 in Delhi? You can contact NAMOKAR ENTERPRISES, Delhi for availability and quotation.

SANT CI-18 Cast Iron Ball Valve – Class 125, Flanged (ISI Marked) SANT CI-18 Cast Iron Ball Valve is a three-piece, hand-lever-operated flanged ball valve designed for flow isolation in water, oil and gas applications. SANT specifies the valve to IS:9890 Class 125, with a Cast Iron IS:210 Grade FG220 body, SS AISI-304 ball, SS AISI-410 stem and renewable Teflon seat. It is ISI marked and supplied with a works' test certificate. Product Specifications Specification Details Brand SANT Valves Model CI-18 Product Cast Iron Ball Valve Class Class 125 Standard IS:9890 Class 125 ISI Status ISI Marked Design Three-Piece Operation Hand Lever Body Material Cast Iron IS:210 Grade FG220 Ball Material Stainless Steel AISI-304 Stem Material Stainless Steel AISI-410 Seat Renewable Teflon Gland Packing Teflon Rings End Connection Flanged Flange Standard IS:3516-1966 undrilled / B.S.10 Table F Body Test Pressure 300 Psig / 21 bar(g), Hydraulic Seat Test Pressure 220 Psig / 15.4 bar(g), Hydraulic Seat Air Test 100 Psig / 6.9 bar(g) HSN 84818030 Applications Listed by SANT Water, Oil, Gas The above specifications are based on SANT Valves' official CI-18 product page and catalogue. Available Sizes SANT's current CI-18 specification lists sizes from 15 mm to 100 mm (1/2“ to 4“). Size Inch 15 mm 1/2“ 20 mm 3/4“ 25 mm 1“ 32 mm 1-1/4“ 40 mm 1-1/2“ 50 mm 2“ 65 mm 2-1/2“ 80 mm 3“ 100 mm 4“ Key Features of SANT CI-18 Cast Iron IS:210 Grade FG220 body Three-piece construction Class 125 design ISI marked Hand-lever operation SS AISI-304 ball SS AISI-410 stem Renewable Teflon seat Teflon ring gland packing Flanged connection Designed according to IS:9890 Class 125 Works' test certificate supplied with every valve Applications SANT officially lists water, oil and gas as applications for the CI-18. It can therefore be considered for suitable: Water distribution systems Industrial water lines Oil handling systems Utility piping Industrial process lines Pumping systems General fluid isolation Commercial and industrial piping installations Final selection should be based on the actual fluid, pressure, temperature and installation conditions. SANT CI-18 Ball Valve Dealer in Delhi NCR NAMOKAR ENTERPRISES supplies SANT industrial valves for customers across Delhi NCR and Pan India. SANT CI-18 Cast Iron Ball Valve requirements can be sourced for: Delhi Gurgaon / Gurugram Noida Faridabad Ghaziabad Manesar Bhiwadi Sonipat Pan India For bulk orders, industrial projects and regular requirements, customers can enquire for the required CI-18 size and quantity. Why Choose NAMOKAR ENTERPRISES? SANT valve product sourcing Cast iron valve supply Industrial valve supplier Bulk and project requirements Multiple CI-18 sizes Delhi NCR supply support Pan-India supply Application-based valve assistance Frequently Asked Questions 1. What is SANT CI-18? SANT CI-18 is a Cast Iron Ball Valve, Class 125, Flanged and ISI Marked. It has a three-piece construction and hand-lever operation. 2. What is the standard of CI-18? The valve is manufactured to IS:9890 Class 125 according to SANT's product specification. 3. What material is used for the CI-18 body? The body is Cast Iron IS:210 Grade FG220. 4. What material is the ball? The ball is stainless steel AISI-304, while the stem is stainless steel AISI-410. 5. What type of seat is used? CI-18 uses a renewable Teflon seat with Teflon ring gland packing. 6. What type of end connection does CI-18 have? It has flanged ends specified as per IS:3516-1966 undrilled / B.S.10 Table F. 7. What is the body test pressure? SANT specifies a 300 Psig (21 bar g) hydraulic body test pressure. The hydraulic seat test is 220 Psig (15.4 bar g), with a 100 Psig (6.9 bar) air test also specified. 8. Is SANT CI-18 ISI marked? Yes. SANT identifies the CI-18 as Class 125, Flanged (ISI Marked). 9. What sizes are available? The official specification lists 15 mm to 100 mm, equivalent to 1/2“ to 4“. 10. Where can I buy SANT CI-18 in Delhi NCR? You can contact NAMOKAR ENTERPRISES for SANT CI-18 Cast Iron Ball Valve requirements in Delhi NCR and for Pan-India supply.

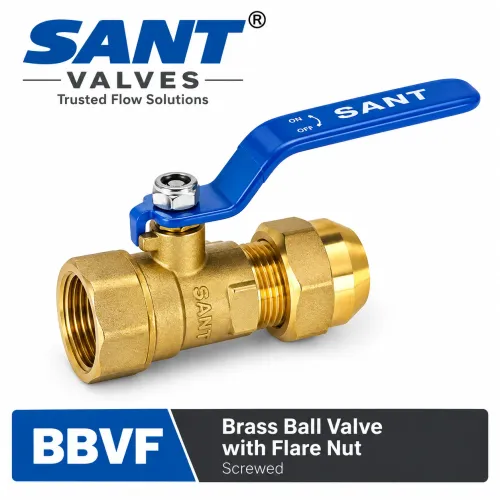

SANT BBVF Brass Ball Valve with Flare Nut – Dealer, Supplier & Wholesaler in Delhi NCR & Pan India SANT BBVF Brass Ball Valve with Flare Nut is a two-piece, lever-operated brass ball valve designed for reliable manual flow isolation where a flare-nut connection is required. SANT specifies a brass body and bonnet, chrome-plated brass ball, brass stem, renewable PTFE seats and one end with a 5/8-inch swivel nut connection. Product Specifications Specification Details Brand SANT Valves Model BBVF Product Brass Ball Valve with Flare Nut Design Two-Piece Operation Lever Operated Body & Bonnet Brass Ball Brass, Chrome Plated Stem Brass Seat Renewable PTFE Packing PTFE Connection Female BSP Screwed + Swivel Nut Flare End Connection 5/8“ Lever M.S. Power Coated Body Test Pressure 20 kg/cm²g Hydraulic Seat Test Pressure 13.5 kg/cm²g Hydraulic HSN 90282000 The specifications above are taken from SANT Valves' official BBVF product information. Key Features Robust brass body and bonnet Two-piece construction Lever-operated quarter-turn operation Chrome-plated brass ball Brass stem Renewable PTFE seats PTFE gland packing Female BSP threaded connection 5/8“ swivel flare-nut connection Compact design for suitable plumbing and utility installations Available Sizes SANT lists BBVF in 20 mm and 25 mm sizes. Size BSP Connection F LL 20 mm 3/4“ BSP 77 mm 100 mm 25 mm 1“ BSP 77 mm 100 mm SANT notes that dimensions can change due to continual product improvements, so dimensions should be confirmed before ordering. Applications SANT BBVF can be considered for suitable: Plumbing systems Water supply lines Building utility services HVAC utility connections Equipment connection lines Commercial piping General fluid isolation applications The actual valve should be selected according to the fluid, pressure, temperature and connection requirements of the installation. SANT BBVF Brass Ball Valve Dealer in Delhi NCR NAMOKAR ENTERPRISES supplies SANT valves and industrial flow-control products for customers across Delhi NCR and Pan India. We can support SANT BBVF requirements in: Delhi Gurgaon / Gurugram Noida Faridabad Ghaziabad Manesar Bhiwadi Sonipat Pan India For bulk orders, industrial requirements and project supplies, customers can enquire for the required BBVF size and quantity. Why Choose NAMOKAR ENTERPRISES? SANT valve product sourcing Brass valve supplier Industrial valve supply Bulk and project orders Multiple SANT valve models Delhi NCR supply support Pan-India supply Application-based product assistance Frequently Asked Questions 1. What is SANT BBVF? SANT BBVF is a brass ball valve with a flare nut, featuring a two-piece design and lever operation. 2. What material is used for the BBVF body? The body and bonnet are made from brass. 3. What material is the ball? The ball is chrome-plated brass. 4. What type of seat is used? SANT specifies renewable PTFE seats with PTFE packing. 5. What is the flare connection? The BBVF has one end with a 5/8“ swivel nut connection. 6. Which sizes are available? The official specification lists 20 mm (3/4“ BSP) and 25 mm (1“ BSP). 7. What is the body test pressure? The body test pressure is 20 kg/cm²g hydraulic, while the seat test pressure is 13.5 kg/cm²g hydraulic. 8. What is the difference between BBVF and BBVSF? BBVF is the brass ball valve with flare nut, whereas BBVSF adds an integrated stainless-steel strainer to the assembly. SANT lists both products separately in its brass valve range

SANT BBVF Brass Ball Valve with Flare Nut – Dealer, Supplier & Wholesaler in Delhi NCR & Pan India SANT BBVF Brass Ball Valve with Flare Nut is a two-piece, lever-operated brass ball valve designed for reliable manual flow isolation where a flare-nut connection is required. SANT specifies a brass body and bonnet, chrome-plated brass ball, brass stem, renewable PTFE seats and a 5/8-inch swivel-nut end connection. Product Specifications Specification Details Brand SANT Valves Model BBVF Product Brass Ball Valve with Flare Nut Design Two-Piece Operation Lever Operated Body & Bonnet Brass Ball Brass, Chrome Plated Stem Brass Seat Renewable PTFE Packing PTFE Connection Female BSP Screwed + Swivel Nut Flare End Connection 5/8“ Lever M.S. Powder Coated Body Test Pressure 20 kg/cm²g Hydraulic Seat Test Pressure 13.5 kg/cm²g Hydraulic HSN 90282000 These specifications are from SANT Valves' official BBVF product information. Available Sizes SANT currently lists BBVF in the following sizes: Size BSP Connection Approx. F Approx. LL 20 mm 3/4“ BSP 77 mm 100 mm 25 mm 1“ BSP 77 mm 100 mm The manufacturer notes that dimensions may change due to ongoing design improvements, so dimensions should be confirmed before ordering. Key Features of SANT BBVF Brass two-piece construction Lever-operated quarter-turn mechanism Chrome-plated brass ball Brass stem Renewable PTFE seats PTFE packing Female BSP screwed inlet 5/8“ swivel flare-nut connection Compact design Suitable for installations requiring a flare connection Hydraulic body and seat testing as specified by SANT Applications SANT BBVF Brass Ball Valve can be used in suitable: Plumbing systems Water supply lines Utility piping Building services HVAC-related utility connections Equipment connection lines Commercial piping installations General fluid isolation applications The exact application should be selected according to the fluid, pressure, temperature and connection requirements. SANT BBVF Brass Ball Valve Dealer in Delhi NCR NAMOKAR ENTERPRISES supplies SANT valves and industrial flow-control products across Delhi NCR and Pan India. SANT BBVF requirements can be sourced for customers in: Delhi Gurgaon / Gurugram Noida Faridabad Ghaziabad Manesar Bhiwadi Sonipat Pan India For bulk orders, project requirements and regular supply, customers can enquire for the required BBVF size and quantity. Why Choose NAMOKAR ENTERPRISES? SANT valve product sourcing Brass valve supplier Industrial valve supply Bulk and project orders Delhi NCR supply support Pan-India supply Multiple SANT valve models Application-based product assistance Frequently Asked Questions 1. What is SANT BBVF? SANT BBVF is a brass ball valve with a flare nut, featuring a two-piece construction and lever operation. 2. What is the material of the BBVF body? The body and bonnet are made from brass. 3. What type of ball is used? The valve uses a chrome-plated brass ball. 4. What type of seat does the BBVF use? SANT specifies renewable PTFE seats and PTFE packing. 5. What is the flare connection size? The BBVF has a 5/8-inch swivel-nut end connection. 6. What sizes are available? The current SANT specification lists 20 mm (3/4“ BSP) and 25 mm (1“ BSP). 7. What is the BBVF body test pressure? SANT specifies a 20 kg/cm²g hydraulic body test pressure and 13.5 kg/cm²g hydraulic seat test pressure. 8. Is BBVF different from SANT BBVSF? Yes. BBVF is the brass ball valve with flare nut, while BBVSF additionally incorporates a stainless-steel strainer. 9. Where can I buy SANT BBVF in Delhi NCR? You can contact NAMOKAR ENTERPRISES for SANT BBVF Brass Ball Valve requirements in Delhi NCR and for Pan-India supply.

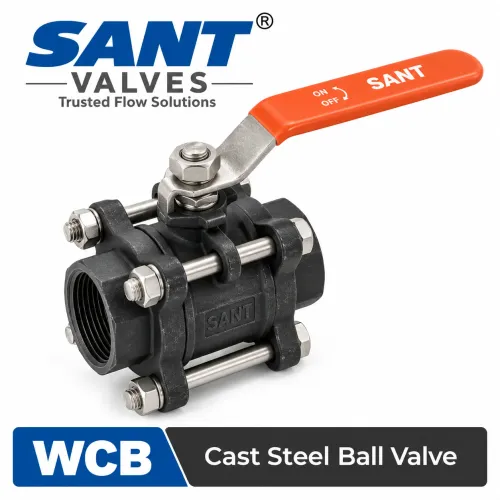

SANT WCB Cast Steel Ball Valve – Dealer, Supplier & Wholesaler in Delhi NCR & Pan India SANT WCB Cast Steel Ball Valve is a robust three-piece, lever-operated ball valve manufactured with a cast carbon steel body conforming to ASTM A216 Grade WCB. It is designed for dependable on/off isolation in industrial piping systems and uses a renewable carbon-filled PTFE seat, SS 304 ball and SS 410 stem. SANT specifies screwed female BSP taper-threaded ends for this WCB model. Product Specifications Specification Details Brand SANT Valves Model WCB Product Cast Steel Ball Valve Design Three-Piece Operation Lever Operated Body Material Cast Carbon Steel Body Standard ASTM A216 Grade WCB Ball Material SS AISI-304 / CF8 Stem Material SS AISI-410 Seat Renewable Carbon-Filled PTFE Gland Packing PTFE / Carbon-Filled PTFE End Connection Female BSP Taper Threads Body Test Pressure 104 barg Hydraulic Seat Test Pressure 76 barg Hydraulic Pressure-Temperature Rating 69 barg at 30°C; 5 bar at 225°C Lever Galvanised Carbon Steel with PVC Sleeve HSN 84818030 These specifications are based on SANT's current official WCB product documentation. Key Features of SANT WCB Ball Valve ASTM A216 Grade WCB cast steel body Three-piece construction Lever-operated quarter-turn design SS 304 / CF8 ball SS 410 stem Renewable carbon-filled PTFE seat PTFE gland sealing Female BSP taper screwed connections High-pressure testing capability Works' test certificate supplied with every valve Compact and serviceable three-piece construction Available Sizes The official SANT WCB specification lists the following sizes: Nominal Size Inch Size 15 mm 1/2“ 20 mm 3/4“ 25 mm 1“ 32 mm 1-1/4“ 40 mm 1-1/2“ 50 mm 2“ Applications The SANT WCB Cast Steel Ball Valve can be considered for industrial flow-isolation applications involving suitable fluids and operating conditions, including: Industrial process piping Water and utility systems Oil handling systems General process-fluid lines Pumping systems Chemical and industrial plants High-pressure utility piping Equipment isolation For the exact application, valve selection should be matched to the fluid, pressure, temperature and compatibility requirements. SANT WCB Cast Steel Ball Valve Dealer in Delhi NCR NAMOKAR ENTERPRISES supplies SANT industrial valves for customers across Delhi NCR and Pan India. We can support requirements for SANT WCB Cast Steel Ball Valves in: Delhi Gurgaon / Gurugram Noida Faridabad Ghaziabad Manesar Bhiwadi Sonipat Pan India For industrial projects, bulk orders and regular valve requirements, customers can enquire for the required size and quantity. Why Choose NAMOKAR ENTERPRISES? SANT valve product sourcing Cast steel valve supply Industrial valve supplier Bulk and project requirements Multiple valve sizes Delhi NCR supply support Pan-India supply Application-based valve selection assistance Frequently Asked Questions 1. What is SANT WCB Ball Valve? SANT WCB is a three-piece cast steel ball valve with lever operation and a cast carbon steel body manufactured to ASTM A216 Grade WCB. 2. What does WCB mean in a ball valve? WCB refers to the cast carbon steel body material specification ASTM A216 Grade WCB, which SANT specifies for this valve. 3. What material is used for the ball? The ball is specified as SS AISI-304 / CF8. 4. What material is used for the stem? SANT specifies an SS AISI-410 stem. 5. What type of seat is used? The valve uses a renewable carbon-filled PTFE seat. 6. What type of connection does the WCB model have? The WCB model has screwed female BSP taper threads. 7. What sizes are available? The listed range is 15 mm to 50 mm (1/2“ to 2“). 8. Is the SANT WCB Ball Valve three-piece? Yes. SANT specifies the WCB model as a three-piece, lever-operated design. 9. Where can I buy SANT WCB Cast Steel Ball Valve in Delhi NCR? You can contact NAMOKAR ENTERPRISES for SANT WCB Cast Steel Ball Valve requirements in Delhi NCR and for Pan-India supply.

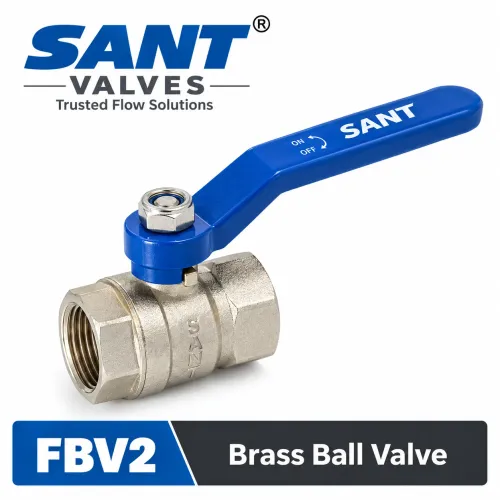

SANT FBV2 Brass Ball Valve – Dealer, Supplier & Wholesaler in Delhi NCR & Pan India SANT FBV2 Brass Ball Valve is a forged brass, two-piece, lever-operated ball valve designed for reliable on/off flow isolation in plumbing, utility and industrial piping systems. The valve features a full-bore port, nickel-plated brass ball and stem, renewable PTFE seats and female BSP parallel screwed connections. SANT specifies the FBV2 at PN-25 pressure rating. SANT FBV2 Brass Ball Valve Specifications Specification Details Brand SANT Valves Model FBV2 Product Forged Brass Ball Valve Design Two-Piece Operation Lever Operated Body Material Forged Brass Pressure Rating PN-25 Ball Brass, Nickel Plated Stem Machined Brass, Nickel Plated Seat Renewable PTFE Gland Seal / Packing PTFE Port Opening Full Bore End Connection Screwed Female BSP Parallel Threads Body Test Pressure 40 kg/cm²g Hydraulic Working Pressure 25 kg/cm²g Hydraulic Lever Aluminium HSN 84818090 The above specifications are based on SANT Valves' official FBV2 product information. Key Features Forged brass body construction Two-piece ball valve design Full-bore flow passage Easy quarter-turn lever operation Nickel-plated brass ball Nickel-plated machined brass stem Renewable PTFE seats PTFE gland sealing Female BSP parallel threaded ends PN-25 pressure rating Available in a wide range of sizes Available Sizes SANT lists FBV2 from 8 mm to 100 mm, covering 1/4“ to 4“. Size Inch 8 mm 1/4“ 10 mm 3/8“ 15 mm 1/2“ 20 mm 3/4“ 25 mm 1“ 32 mm 1-1/4“ 40 mm 1-1/2“ 50 mm 2“ 65 mm 2-1/2“ 80 mm 3“ 100 mm 4“ Applications SANT FBV2 Brass Ball Valve is suitable for various flow-isolation requirements, including: Water supply systems Plumbing installations Industrial utility lines HVAC piping Building services Pumping systems Commercial piping General fluid-control applications Its full-bore design and quarter-turn operation make it suitable where quick manual shut-off is required. SANT FBV2 Brass Ball Valve Dealer in Delhi NCR NAMOKAR ENTERPRISES supplies SANT valves and industrial flow-control products for customers across Delhi NCR and Pan India. We can support requirements for SANT FBV2 Brass Ball Valve in: Delhi Gurgaon / Gurugram Noida Faridabad Ghaziabad Manesar Bhiwadi Sonipat Pan India For bulk orders, industrial projects and regular requirements, customers can enquire for the required FBV2 size and quantity. Why Choose NAMOKAR ENTERPRISES? SANT valve product sourcing Brass valve supply Industrial valve supplier Bulk and project requirements Multiple FBV2 sizes Delhi NCR supply support Pan-India supply Application-based valve assistance Frequently Asked Questions 1. What is SANT FBV2? SANT FBV2 is a forged brass, two-piece ball valve with lever operation, designed for flow isolation. 2. What is the pressure rating of FBV2? The FBV2 has a PN-25 pressure rating. SANT specifies a body test pressure of 40 kg/cm²g hydraulic and working pressure of 25 kg/cm²g hydraulic. 3. What material is the FBV2 body made from? The valve body is made from forged brass, with SANT specifying IS:6912 FLB for the body material. 4. Is the FBV2 a full-bore ball valve? Yes. SANT specifies the FBV2 with a full-bore port opening. 5. What type of connection does FBV2 use? The valve has screwed female BSP parallel threads. 6. What material is used for the ball? The ball is brass and nickel plated. The stem is machined brass with nickel plating. 7. What sizes are available? SANT lists FBV2 sizes from 1/4“ to 4“, corresponding to 8 mm through 100 mm. 8. What type of handle does FBV2 have? The FBV2 uses an aluminium lever for manual quarter-turn operation. 9. Where can I buy SANT FBV2 Brass Ball Valve in Delhi NCR? You can contact NAMOKAR ENTERPRISES for SANT FBV2 requirements in Delhi NCR and for Pan-India supply.

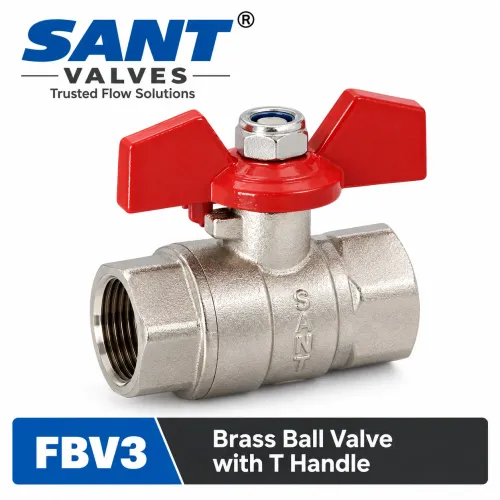

SANT FBV3 Brass Ball Valve with T Handle – Dealer, Supplier & Wholesaler in Delhi NCR & Pan India SANT FBV3 Brass Ball Valve with T Handle is a forged brass, two-piece ball valve designed for dependable on/off flow isolation. It features a T-handle operation, full-bore port, renewable PTFE seats, nickel-plated brass ball and stem, and screwed female BSP parallel threads. SANT specifies the FBV3 at PN-25 pressure rating. Product Specifications Specification Details Brand SANT Valves Model FBV3 Product Brass Ball Valve with T Handle Design Two-Piece Operation T Handle Operated Body Material Forged Brass Pressure Rating PN-25 Ball Material Brass, Nickel Plated Stem Machined Brass, Nickel Plated Seat Renewable PTFE Packing PTFE Port Opening Full Bore End Connection Female BSP Parallel Threads Body Test Pressure 40 kg/cm²g Hydraulic Working Pressure 25 kg/cm²g Hydraulic Handle Material Aluminium HSN 84818090 These specifications are from SANT Valves' official FBV3 product documentation. Key Features of SANT FBV3 Forged brass body for robust construction Two-piece ball valve design Convenient T-handle operation Full-bore flow passage Nickel-plated brass ball Nickel-plated machined brass stem Renewable PTFE seats PTFE gland packing Female BSP parallel screwed ends PN-25 pressure rating Compact design for plumbing and utility installations SANT lists FBV3 in its brass valve range along with FBV2 and FBV4 brass ball valves. Available Sizes The official FBV3 specification lists: Nominal Size Inch Size 15 mm 1/2“ 20 mm 3/4“ 25 mm 1“ Applications SANT FBV3 Brass Ball Valve can be used for a range of flow-isolation requirements, including: Water supply lines Plumbing systems Building utility services HVAC utility piping Industrial utility lines Pumping and circulation systems General fluid-control applications Commercial piping installations Its full-bore design and quarter-turn valve operation make it suitable where quick manual shut-off is required. SANT FBV3 Brass Ball Valve Dealer in Delhi NCR NAMOKAR ENTERPRISES supplies SANT valves and industrial flow-control products for customers across Delhi NCR and Pan India. We can support requirements for SANT FBV3 Brass Ball Valve in: Delhi Gurgaon / Gurugram Noida Faridabad Ghaziabad Manesar Bhiwadi Sonipat Pan India For bulk orders, project requirements and regular industrial supply, customers can enquire for the required FBV3 size and quantity. Why Choose NAMOKAR ENTERPRISES? SANT valve product sourcing Industrial valve supplier Brass valve supply Bulk and project orders Multiple valve sizes Delhi NCR delivery support Pan-India supply Application-based product assistance Frequently Asked Questions 1. What is SANT FBV3? SANT FBV3 is a forged brass ball valve with a T handle, designed for manual flow isolation. It has a two-piece construction and full-bore port. 2. What is the pressure rating of FBV3? The SANT FBV3 has a PN-25 pressure rating. Its specified body test pressure is 40 kg/cm²g hydraulic and working pressure is 25 kg/cm²g hydraulic. 3. What material is used for the body? The body is made from forged brass. 4. What type of handle does FBV3 have? FBV3 uses an aluminium T handle for manual operation. 5. Does the FBV3 have a full-bore opening? Yes. SANT specifies the FBV3 with a full-bore port opening. 6. What type of threads are provided? The valve has screwed female BSP parallel threads. 7. What sizes are available? SANT lists FBV3 in 15 mm (1/2“), 20 mm (3/4“) and 25 mm (1“) sizes. 8. Where can I buy SANT FBV3 in Delhi NCR? You can contact NAMOKAR ENTERPRISES for SANT FBV3 Brass Ball Valve requirements in Delhi NCR and for Pan-India supply.

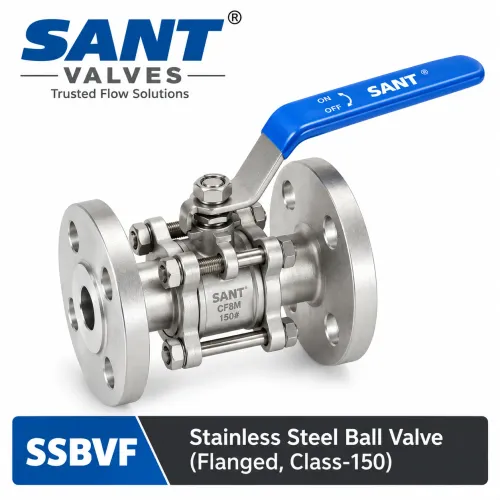

SANT SSBVF Stainless Steel Ball Valve – Flanged, Class 150 SANT SSBVF Stainless Steel Ball Valve is a 3-piece, lever-operated stainless steel ball valve designed for reliable on/off flow isolation in industrial and commercial piping systems. The valve features an SS AISI-304 (CF8) body, AISI-304 ball, AISI-410 stem, renewable PTFE seat and gland packing, with drilled flanges as per ASME/ANSI B16.5 Class 150. Product Specifications Specification Details Brand SANT Valves Model SSBVF Product Stainless Steel Ball Valve Type Flanged Ball Valve Pressure Class Class 150 Design 3-Piece Operation Lever Operated Body Material SS AISI-304 (CF8) Ball SS AISI-304 (CF8) Stem SS AISI-410 Seat Renewable PTFE Gland Packing PTFE End Connection Flanged, Class 150 Flange Standard B16.5 Class 150, Drilled Body Test Pressure 30 barg / 435 psig Hydraulic Seat Test Pressure 22 barg / 320 psig Hydraulic Maximum Working Temperature 225°C HSN 84818090 The above specifications are from SANT Valves' current SSBVF product information. Key Features 3-piece stainless steel construction Class 150 pressure rating Lever-operated design for quick manual operation SS AISI-304 / CF8 body and ball AISI-410 stainless steel stem Renewable PTFE seat PTFE gland packing Drilled flanged ends Suitable for industrial flow isolation SANT works' test certificate supplied with the valve Available Sizes SANT lists the SSBVF range in the following nominal sizes: 15 mm (1/2“) to 100 mm (4“) Size Inch Size 15 mm 1/2“ 20 mm 3/4“ 25 mm 1“ 32 mm 1-1/4“ 40 mm 1-1/2“ 50 mm 2“ 65 mm 2-1/2“ 80 mm 3“ 100 mm 4“ Applications SANT SSBVF Stainless Steel Ball Valve can be used for various industrial and utility piping applications, where a flanged stainless-steel isolation valve is required. Typical applications include: Industrial process piping Water and utility systems Chemical process lines General fluid handling Pumping systems HVAC and utility services Stainless-steel piping installations Industrial equipment isolation Application suitability should be confirmed according to the actual fluid, pressure, temperature and operating conditions. SANT SSBVF Ball Valve Dealer & Supplier in Delhi NCR NAMOKAR ENTERPRISES supplies SANT industrial valves for customers across Delhi NCR and Pan India. We can provide SANT SSBVF Stainless Steel Ball Valve for: Delhi Gurgaon / Gurugram Noida Faridabad Ghaziabad Manesar Bhiwadi Pan India For industrial projects and bulk requirements, customers can enquire for the required SSBVF size, quantity and Class 150 specification. Why Choose NAMOKAR ENTERPRISES? SANT valve product sourcing Industrial valve supplier Bulk and project requirements Multiple valve sizes Delhi NCR supply support Pan-India supply Assistance in selecting suitable valve specifications Frequently Asked Questions 1. What is SANT SSBVF? SSBVF is SANT's Stainless Steel Ball Valve, Flanged, Class 150. It is a 3-piece, lever-operated design. 2. What is the pressure class of SSBVF? The SSBVF is rated Class 150. 3. What material is the SSBVF body? The body is SS AISI-304 (CF8). 4. What material is used for the ball? SANT specifies an AISI-304 (CF8) stainless steel ball. 5. What type of seat is used? The valve uses a renewable PTFE seat, with PTFE gland packing. 6. What type of flange connection does SSBVF have? The valve has drilled flanges according to B16.5 Class 150. 7. What is the maximum working temperature? SANT specifies a maximum working temperature of 225°C for this model. 8. What sizes are available? The listed range is 15 mm to 100 mm (1/2“ to 4“). 9. Where can I buy SANT SSBVF in Delhi NCR? You can contact NAMOKAR ENTERPRISES for SANT SSBVF Stainless Steel Ball Valve requirements in Delhi NCR and Pan India.

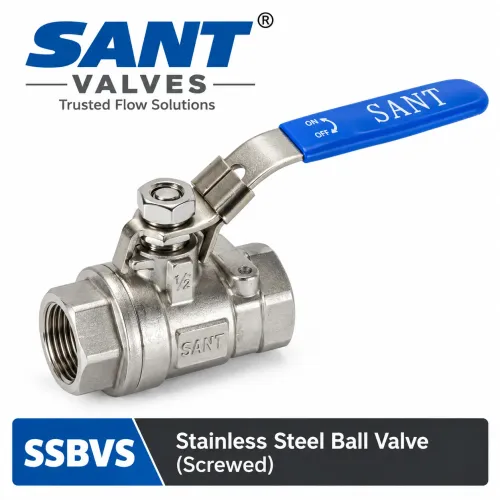

SANT SSBVS Stainless Steel Ball Valve (Screwed) – Dealer, Supplier & Wholesaler in Delhi NCR & Pan India SANT SSBVS Stainless Steel Ball Valve (Screwed) is a two-piece, lever-operated stainless steel ball valve designed for dependable on/off flow isolation. According to SANT's official specifications, the valve has an SS CF8M body, SS 316 ball and stem, renewable PTFE seat, full-bore port opening, and screwed female BSP taper-threaded ends. SANT SSBVS Stainless Steel Ball Valve – Product Details Specification Details Brand SANT Valves Model SSBVS Product Stainless Steel Ball Valve Connection Screwed Design Two-Piece Operation Lever Operated Body Material SS CF8M Ball Material CF-8M / SS 316 Stem Material SS 316 Seat Renewable PTFE Packing PTFE Port Full Bore End Connection Female BSP Taper Threads HSN 84818090 Body Test Pressure 100 kg/cm²g Hydraulic Seat Test Pressure 100 kg/cm²g Hydraulic Available Sizes 15, 20, 25, 32, 40 & 50 mm Inch Sizes 1/2“, 3/4“, 1“, 1-1/4“, 1-1/2“ & 2“ SANT also states that a works' test certificate is furnished with every supply. Key Features of SANT SSBVS Stainless steel CF8M construction SS 316 ball and stem Two-piece compact design Full-bore flow passage Renewable PTFE seat PTFE gland packing Lever-operated quarter-turn operation Female BSP screwed connection Suitable for applications requiring stainless steel flow-control equipment Available in commonly used 1/2“ to 2“ sizes Applications SANT SSBVS Stainless Steel Ball Valve can be considered for various fluid-handling and process applications, including: Industrial piping systems Water and utility lines Process-fluid systems Chemical and general industrial applications HVAC and utility services Pumping systems Stainless steel piping installations General flow isolation applications Application suitability should always be confirmed against the actual medium, pressure, temperature and installation conditions. SANT Stainless Steel Ball Valve Supplier in Delhi NCR NAMOKAR ENTERPRISES supplies industrial valves and flow-control products for customers across Delhi NCR and India. The SANT SSBVS is a suitable option when a project requires a stainless steel, full-bore, screwed ball valve with SS 316 trim. We can support requirements for: Delhi Gurgaon / Gurugram Noida Faridabad Ghaziabad Bhiwadi Manesar Pan India Why Choose NAMOKAR ENTERPRISES? SANT valve product sourcing Industrial valve supply Bulk and project requirements Multiple valve sizes Delhi NCR supply support Product selection based on application requirements Support for industrial and commercial piping requirements Frequently Asked Questions 1. What is SANT SSBVS? SANT SSBVS is a stainless steel ball valve with screwed connections, featuring a two-piece, lever-operated design. 2. What material is used for the SSBVS body? The official SANT specification lists the body material as SS CF8M. 3. Is the SSBVS ball made from stainless steel? Yes. SANT specifies the ball as CF-8M / SS 316, while the stem is SS 316. 4. What type of seat is used? The valve uses a renewable PTFE seat. 5. What connection does SSBVS have? The valve has screwed female BSP taper threads. 6. Is SANT SSBVS a full-bore valve? Yes. SANT's specification identifies the port opening as full bore. 7. What sizes are available? SANT lists sizes from 15 mm to 50 mm, equivalent to 1/2“ through 2“. 8. Where can I buy SANT SSBVS in Delhi NCR? You can contact NAMOKAR ENTERPRISES for SANT SSBVS Stainless Steel Ball Valve requirements in Delhi NCR and for Pan-India supply.

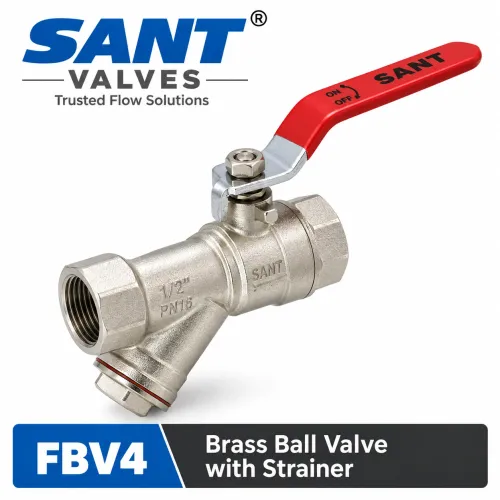

SANT FBV4 Brass Ball Valve with Strainer SANT FBV4 Brass Ball Valve with Strainer is a forged brass, two-piece ball valve with an inbuilt Y-type strainer, designed for reliable flow isolation and filtration in piping systems. SANT specifies a PN-25 pressure rating, forged brass body, PTFE seats and gland seal, brass ball and stem, and screwed female BSP parallel-threaded ends. Product Specifications Specification Details Brand SANT Valves Model FBV4 Product Brass Ball Valve with Strainer Body Material Forged Brass Design Two-Piece Strainer Inbuilt Y-Strainer Pressure Rating PN-25 Ball Material Brass Stem Material Brass Seat PTFE Gland Seal PTFE Strainer Body Forged Brass Lever M.S. Powder Coated End Connection Screwed Female BSP Parallel Threads Body Test Pressure 40 kg/cm²g Hydraulic Working Pressure 25 kg/cm²g Hydraulic Available Sizes 15, 20, 25, 32 & 40 mm These specifications are based on SANT Valves' official FBV4 product information. Key Features Forged brass construction for durability Integrated strainer and ball valve in one compact assembly Two-piece valve design PTFE sealing components Brass ball and stem Easy quarter-turn lever operation Female BSP parallel screwed connections PN-25 pressure rating Suitable for applications where flow control and debris filtration are required Applications SANT FBV4 can be used in: Water supply and plumbing systems HVAC and utility piping Building services Industrial water lines Pumping and circulation systems Process-water applications General fluid-control installations SANT lists FBV4 within its brass valve range alongside other brass ball valves, strainers and plumbing valves. SANT FBV4 Brass Ball Valve Dealer & Supplier in Delhi NCR NAMOKAR ENTERPRISES supplies SANT valves and industrial flow-control products for customers in Delhi, Gurgaon, Noida, Faridabad, Ghaziabad, Bhiwadi and across Delhi NCR. The FBV4 is a practical choice when a project requires both shut-off control and an integrated strainer in a single valve assembly. For bulk requirements, industrial projects and regular supply, customers can enquire about SANT FBV4 Brass Ball Valve with Strainer in the required size and quantity. Why Choose NAMOKAR ENTERPRISES? SANT valve product sourcing Industrial valve supplier Bulk and project requirements Delhi NCR delivery support Product selection based on application and size Suitable for plumbing and industrial requirements FAQs 1. What is SANT FBV4? SANT FBV4 is a forged brass ball valve with an integrated Y-type strainer. 2. What is the pressure rating of FBV4? The official SANT specification lists FBV4 at PN-25 with a working pressure of 25 kg/cm²g hydraulic. 3. What material is used for the FBV4 body? The body and strainer body are made from forged brass. 4. What type of connection does FBV4 have? It has screwed female BSP parallel threads. 5. Which sizes are available? SANT lists 15, 20, 25, 32 and 40 mm sizes. 6. What is the advantage of an integrated strainer? It helps filter unwanted particles from the flowing medium before they travel further into the piping system or connected equipment. 7. Is FBV4 suitable for water applications? Yes. Its brass construction and integrated strainer make it suitable for various water and utility piping applications, subject to the operating conditions. 8. Where can I buy SANT FBV4 in Delhi NCR? You can enquire with NAMOKAR ENTERPRISES for SANT FBV4 supply in Delhi NCR and other locations in India.

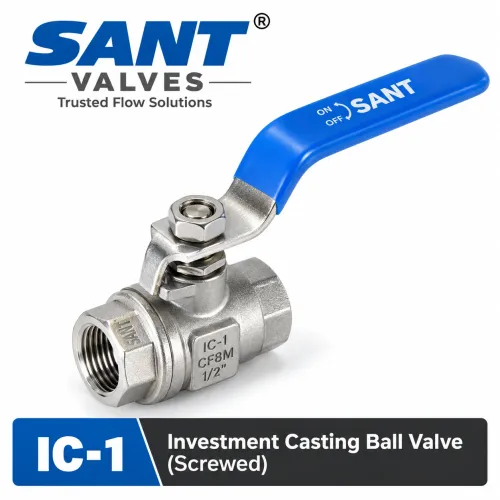

SANT IC-1 Investment Casting Ball Valve – Authorized Dealer, Supplier & Wholesaler in Delhi NCR & Pan India NAMOKAR ENTERPRISES is a trusted SANT Valves Dealer, Supplier and Wholesaler in Delhi NCR, offering the SANT IC-1 Investment Casting Ball Valve for industrial, commercial, water, oil, gas and other compatible fluid-handling applications. The SANT IC-1 is a two-piece stainless-steel investment casting ball valve with a PN-40 rating, renewable Teflon seat and screwed female BSP taper-threaded ends to BS 21. SANT IC-1 Investment Casting Ball Valve The SANT IC-1 is manufactured with a CF-8 / SS 304 body, while the ball and stem are made from AISI 304 stainless steel. The valve uses a renewable Teflon seat and Teflon gland packing for sealing. Its compact two-piece construction and lever operation make it suitable for applications requiring dependable quarter-turn flow isolation. Product Specifications Specification Details Brand SANT Valves Model IC-1 Product Investment Casting Ball Valve Design Two Piece Body Material SS 304 / CF-8 Ball Material SS 304 / AISI-304 Stem Material SS 304 / AISI-304 Seat Renewable Teflon Gland Packing Teflon Pressure Rating PN-40 End Connection Screwed Female BSP Taper Threads Thread Standard BS 21 Operation Lever Operated Body Test Pressure 60 kg/cm² Hydraulic Seat Test Pressure 40 kg/cm² Hydraulic HSN 84818010 The manufacturer's published specifications list the IC-1 in sizes from 15 mm (½“) through 50 mm (2“). Available Sizes Size Nominal Size 15 mm ½ inch 20 mm ¾ inch 25 mm 1 inch 32 mm 1¼ inch 40 mm 1½ inch 50 mm 2 inch Key Features PN-40 pressure rating Stainless steel CF-8 / SS 304 body Two-piece investment casting design Stainless steel AISI-304 ball and stem Renewable Teflon seat Teflon gland packing Female BSP taper threaded ends BS 21 thread specification Lever-operated quarter-turn design Available from ½“ to 2“ Suitable for industrial and commercial piping applications Applications The SANT IC-1 Investment Casting Ball Valve can be considered for compatible applications such as: Industrial process piping Water systems Compressed-air systems Oil and compatible fluid lines Gas applications where the specific valve certification and service requirements permit HVAC and utility piping Chemical and general industrial services Plant maintenance and replacement applications Important: The correct valve should always be selected according to the actual media, pressure, temperature and applicable certification requirements. SANT Ball Valve Dealer in Delhi NCR Looking for a SANT IC-1 Ball Valve Dealer in Delhi NCR? NAMOKAR ENTERPRISES supplies SANT Valves to customers across: Delhi | Noida | Gurugram | Ghaziabad | Faridabad | Manesar | Bhiwadi We cater to industrial plants, OEMs, EPC contractors, engineering companies, plumbing contractors, HVAC contractors, project suppliers, distributors and maintenance departments. SANT IC-1 Ball Valve Supplier & Wholesaler in India NAMOKAR ENTERPRISES also provides Pan-India supply for SANT IC-1 Investment Casting Ball Valve requirements. For quotation and correct product selection, share: Required size Quantity Operating pressure Media Operating temperature Application Required certification Delivery location Why Choose NAMOKAR ENTERPRISES? SANT Valves Dealer Industrial valve supplier Valve wholesaler Delhi NCR supply Pan-India supply Bulk order support Project and OEM requirements Industrial valve sourcing Application-based product assistance Frequently Asked Questions 1. What is the SANT IC-1 Ball Valve? The SANT IC-1 is an investment casting stainless-steel ball valve with a two-piece design and screwed ends. 2. What is the pressure rating of the SANT IC-1? The published specification gives the IC-1 a PN-40 rating. 3. What material is the SANT IC-1 body? The body and connector are specified as AISI-304 stainless steel / CF-8. 4. What material are the ball and stem? The ball and stem are specified as AISI-304 stainless steel. 5. What type of seat does the valve use? The valve uses a renewable Teflon seat. 6. What are the available sizes? The published range is ½“, ¾“, 1“, 1¼“, 1½“ and 2“. 7. What type of connection does the SANT IC-1 have? It has screwed female BSP taper threads to BS 21. 8. Is the SANT IC-1 suitable for industrial applications? Yes, it is an industrial stainless-steel ball valve designed for compatible fluid-handling and piping applications. The actual application should be verified against the operating conditions. 9. Can I purchase SANT IC-1 valves in bulk? Yes. NAMOKAR ENTERPRISES caters to bulk, wholesale, project and OEM requirements. 10. Does NAMOKAR ENTERPRISES supply SANT valves Pan India? Yes, NAMOKAR ENTERPRISES provides Pan-India supply for SANT valve requirements, subject to product availability and specifications. SANT IC-1 Supplier – NAMOKAR ENTERPRISES For SANT IC-1 Investment Casting Ball Valves, SS 304 Ball Valves, CF-8 Ball Valves, PN-40 Ball Valves and Sc
