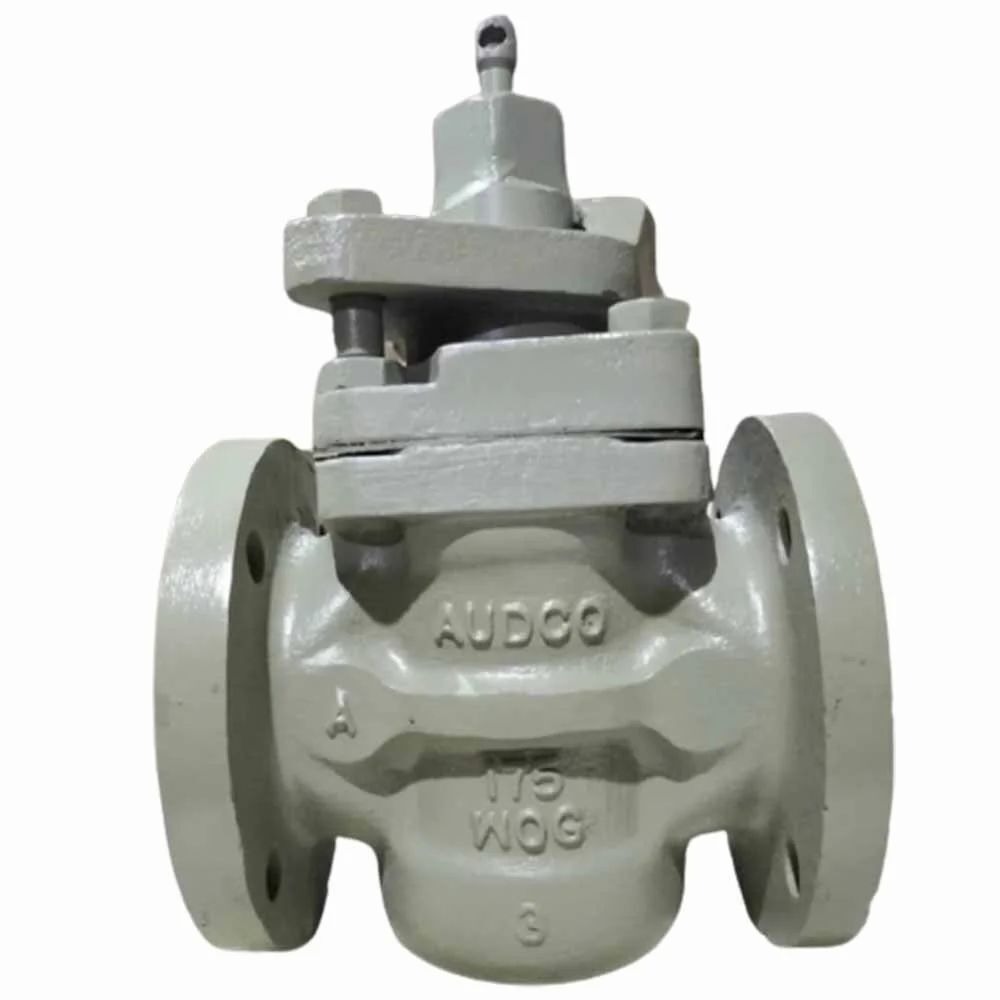

Audco Plug Valve
An Audco plug valve is a quarter-turn rotary valve designed to control the flow of liquids and gases in pipelines. Known for its durability and reliable sealing performance, Audco plug valves are widely used in industries such as oil & gas, petrochemicals, power generation, water treatment, and chemical processing.
Working Principle
The plug valve operates using a cylindrical or tapered plug with a through-port (bore). When the valve handle or actuator rotates the plug 90 degrees, the bore aligns with the pipeline, allowing fluid to pass through. When rotated perpendicular to the pipeline, the solid portion of the plug blocks the flow completely.
This simple quarter-turn operation ensures:
Quick opening and closing
Minimal pressure drop
Tight shut-off capability
Design and Construction
Audco plug valves are typically available in two main designs:
Lubricated Plug Valve
In this design, a lubricant is injected between the plug and body to reduce friction and enhance sealing. The lubricant also prevents corrosion and extends service life. These valves are suitable for high-pressure and high-temperature applications.
Non-Lubricated (Sleeved) Plug Valve
This version uses a PTFE or polymer sleeve between the plug and body. The sleeve provides sealing and reduces torque requirements. Non-lubricated types are ideal for corrosive and clean service applications.
Key components include:
Valve body (cast steel, carbon steel, stainless steel, or alloy steel)
Plug (tapered or cylindrical)
Stem
Sleeve or lubrication system
Actuator or manual lever
Features and Advantages
Audco plug valves are preferred in industrial systems due to the following features:
Bubble-tight shutoff
Low operating torque
Fire-safe design (in specific models)
Bi-directional flow capability
Compact and lightweight construction
Full bore design for pigging operations
Their rugged construction makes them highly resistant to wear and suitable for abrasive and corrosive media.
Applications
Audco plug valves are extensively used in:
Crude oil and natural gas pipelines
Refineries and petrochemical plants
Chemical processing units
Steam and condensate systems
Water and wastewater treatment facilities
HVAC systems
In oil and gas installations, plug valves are often used for isolation, emergency shutdown, and flow diversion services.
Pressure and Temperature Ratings
These valves are manufactured according to international standards such as API, ANSI, and ISO. They are available in various pressure classes (e.g., Class 150 to Class 2500) and can handle temperatures ranging from sub-zero cryogenic conditions to high-temperature steam services, depending on material selection.
Maintenance and Reliability
Audco plug valves are designed for long service life with minimal maintenance. Lubricated types require periodic injection of sealant, while sleeved types offer maintenance-free operation for extended periods. Their simple internal structure reduces the likelihood of mechanical failure.
Conclusion
Audco plug valves combine robust engineering, operational simplicity, and reliable sealing performance. Their versatility, durability, and ease of operation make them an excellent choice for demanding industrial applications where secure flow control is essential.
