IBR-17A Bronze Pressure Reducing Valve Dealer In Delhi
NAMOKAR ENTERPRISES – Authorised Sant Valves Dealer in Delhi
NAMOKAR ENTERPRISES supplies Sant Bronze Pressure Reducing Valves for suitable water and air service applications. The SANT IBR-17A Bronze Pressure Reducing Valve is designed to regulate outlet pressure using a spring-loaded mechanism and rubber diaphragm.
Manufactured with a bronze or gun metal body, this valve features an integral seat, a renewable disc and screwed female BSP parallel threaded connections to BS 21. It is suitable for specified pressure-control applications in industrial and commercial piping systems.
If you are looking for a Sant IBR-17A pressure reducing valve dealer in Delhi, Noida, Ghaziabad, Gurugram or Faridabad, contact NAMOKAR ENTERPRISES for product availability, technical specifications and pricing.

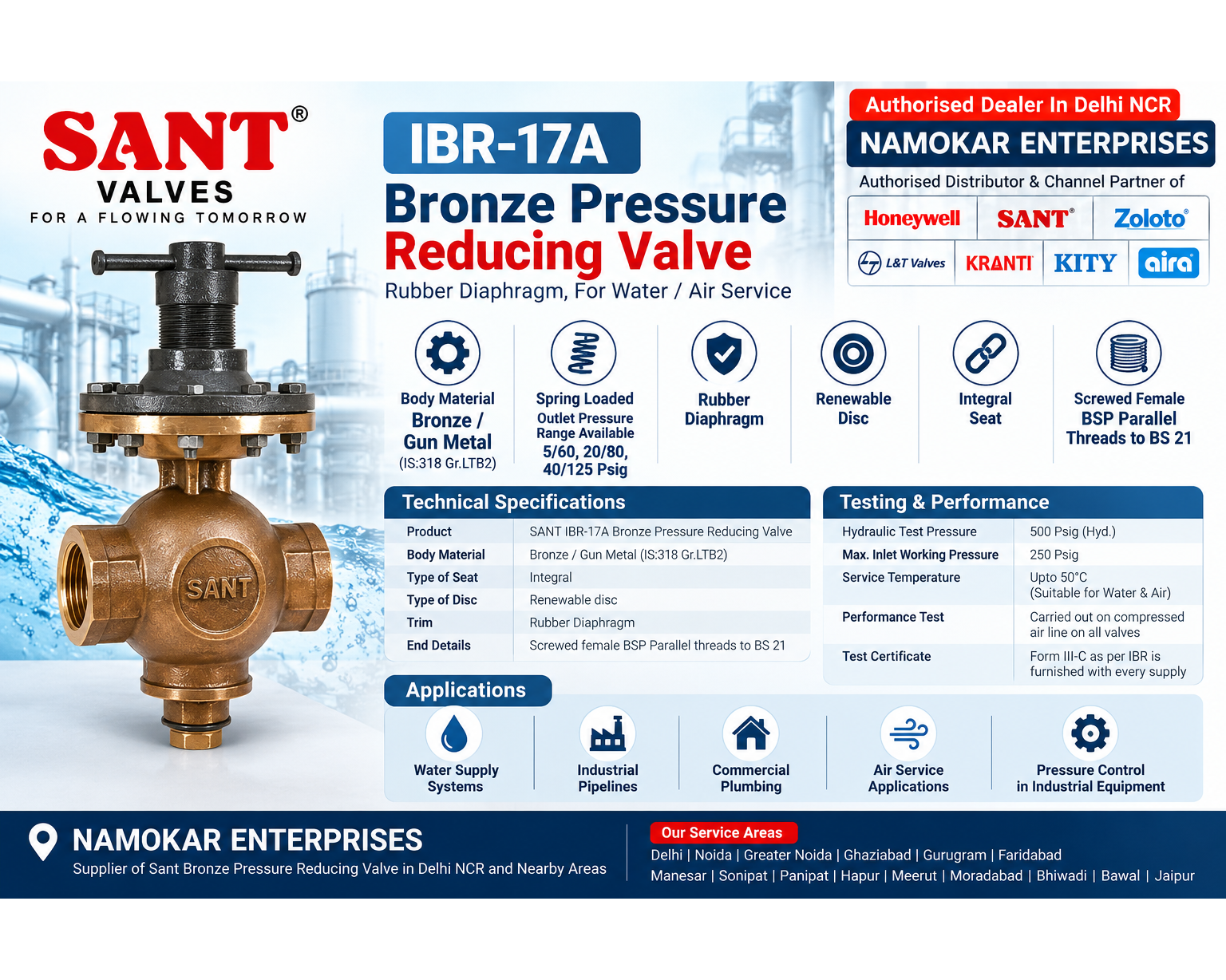

IBR-17A Bronze Pressure Reducing Valve Specifications
| Specification | Details |
|---|---|
| Brand | SANT |
| Model | IBR-17A |
| Product Type | Bronze Pressure Reducing Valve |
| Body Material | Bronze / Gun Metal |
| Material Grade | IS:318 Gr. LT.B2 |
| Operating Mechanism | Spring-loaded |
| Trim | Rubber diaphragm |
| Seat Type | Integral |
| Disc Type | Renewable disc |
| End Connection | Screwed female BSP parallel threads to BS 21 |
| Available Outlet Pressure Ranges | 5, 60; 20, 80; 40, 125 psig, as listed in the supplied product information |
| Maximum Inlet Working Pressure | 250 psig |
| Hydraulic Test Pressure | 500 psig |
| Service Temperature | Up to 50°C |
| Applications | Water and air service |
| HSN Code | 84811000 |
| IBR Documentation | Form III-C test certificate stated to be furnished with every supply |
Important: Confirm the exact outlet pressure range and model configuration with the supplier before ordering, as the pressure-range notation in the supplied product image is ambiguous.
What Is the SANT IBR-17A Bronze Pressure Reducing Valve?
The SANT IBR-17A is a bronze pressure reducing valve used to reduce and regulate downstream pressure in compatible piping systems. Its spring-loaded mechanism and rubber diaphragm support pressure regulation, while the renewable disc allows replacement when required according to the manufacturer's maintenance instructions.
This valve is intended for specified water and air service applications. Selection should be based on inlet pressure, required outlet pressure, flow capacity, connection size and operating temperature.
Key Features and Benefits
Bronze / gun metal construction: Designed for suitable industrial pressure-control applications.
Spring-loaded mechanism: Supports outlet pressure regulation.
Rubber diaphragm: Forms part of the pressure-control mechanism.
Renewable disc: Provides a replaceable disc arrangement.
Integral seat: Seat construction is specified in the product details.
BSP parallel threaded connections: Screwed female connections to BS 21.
Defined pressure ratings: Hydraulic test pressure of 500 psig and maximum inlet working pressure of 250 psig, as specified.
IBR documentation: The supplied product information states that a Form III-C test certificate accompanies every supply.
Applications of IBR-17A Bronze PRV
The valve may be considered for compatible installations such as:
Industrial water service lines
Commercial water supply systems
Suitable air service piping
Pressure control in compatible industrial equipment
Piping installations requiring reduced downstream pressure
Always verify the intended service, pressure rating and applicable installation requirements before use.
Sant Bronze Pressure Reducing Valve Supplier in Delhi NCR
NAMOKAR ENTERPRISES is a distributor and channel partner for Sant, Honeywell, Zoloto, L&T Valves, Kranti, Kity and Aira.
We handle industrial valve enquiries across Delhi NCR and nearby markets, including Delhi, Noida, Greater Noida, Ghaziabad, Gurugram, Faridabad, Manesar, Sonipat, Panipat, Hapur, Meerut, Moradabad, Bhiwadi, Bawal and Jaipur.
For an IBR-17A Bronze Pressure Reducing Valve enquiry, share the required connection size, inlet pressure, desired outlet pressure and application. Our team can help you check product availability and the appropriate configuration.
Frequently Asked Questions (FAQs)
1. What is the SANT IBR-17A Bronze Pressure Reducing Valve used for?
It is designed to reduce and regulate downstream pressure in compatible water and air service piping systems.
2. What material is used in the IBR-17A valve body?
The product information specifies bronze or gun metal, with material grade IS:318 Gr. LT.B2.
3. What is the maximum inlet working pressure of the IBR-17A?
The supplied specifications state a maximum inlet working pressure of 250 psig.
4. What is the hydraulic test pressure of this valve?
The product information specifies a hydraulic test pressure of 500 psig.
5. Does the IBR-17A use a rubber diaphragm?
Yes. The supplied product description lists a rubber diaphragm as the trim.
6. What type of connection does the IBR-17A valve have?
It uses screwed female BSP parallel threaded connections to BS 21.
7. Is the SANT IBR-17A suitable for water service?
Water service is listed in the product information. Confirm the operating conditions and configuration for your installation before purchase.
8. Can the IBR-17A be used for air service?
Yes, air service is listed in the supplied product details. Verify compatibility with the actual air system and operating conditions.
9. What is the service temperature limit?
The supplied specifications state a service temperature of up to 50°C.
10. Does the valve come with an IBR test certificate?
The supplied product information states that a Form III-C test certificate as per IBR is furnished with every supply. Confirm the applicable documentation for your order.
11. Where can I buy a Sant IBR-17A valve in Delhi NCR?
Contact NAMOKAR ENTERPRISES for availability, specifications and pricing enquiries for Sant Bronze Pressure Reducing Valves in Delhi NCR.
12. How do I select the correct IBR-17A pressure reducing valve?
Check the required outlet pressure, inlet pressure, flow rate, connection size, service fluid and temperature. Confirm the exact model and pressure range with the supplier before placing an order.
