The Best Valves Manufacturers in Delhi

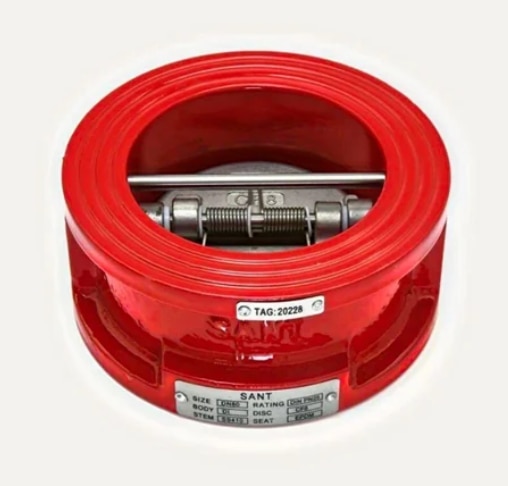

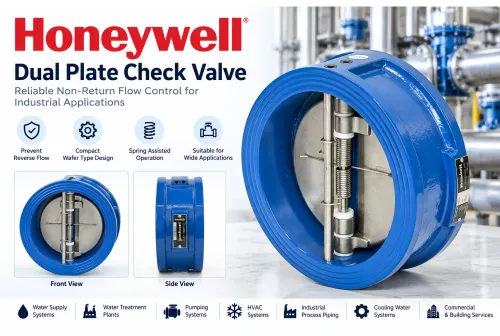

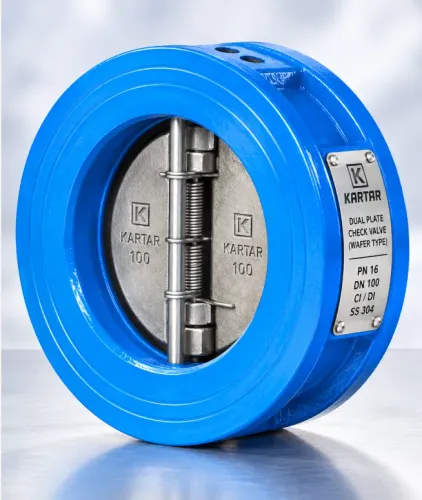

Dual Plate Check Valves – High Efficiency Non-Return Solution Dual Plate Check Valves are advanced non-return valves designed to overcome the limitations of traditional swing and lift check valves. With a compact, lightweight, and robust construction, these valves offer superior performance while occupying significantly less space in piping systems. The valve features two spring-loaded plates mounted on a central hinge pin. As fluid flows, the plates open smoothly, and when the flow decreases, they close instantly using torsion spring action—without requiring reverse flow. This intelligent design ensures non-slam operation and completely eliminates water hammer effects, making it ideal for sensitive and high-performance systems. Due to its silent operation, it is also known as a Silent Check Valve or Wafer Check Valve. Designed for versatility, these valves are suitable for a wide range of industries including oil & gas, petrochemical, HVAC, and power plants. They are available in both soft seated and metal-to-metal seated configurations, allowing use in low as well as extreme temperature and pressure conditions. Key Features: Size range from 2” to 120” Pressure ratings from ANSI Class 125 to Class 2500 API 6A range from API 5000 to API 10000 Suitable for temperature range -196°C (cryogenic) to 900°C (fire-safe applications) Available in Wafer, Double Flanged, Lugged, Butt Weld, Hub Ended, and RTJ designs Optional Jacketed and Cladded body constructions Fugitive emission-free, retainer-less design Optimized spring for over 1 million cycles Zero velocity non-slam closure Eliminates valve-induced water hammer Compliance with API 594, API 598, API 6D, BS 6364, API 6FA standards Dual Plate Check Valves provide a reliable, maintenance-friendly, and energy-efficient solution for preventing backflow while ensuring smooth and quiet system operation.

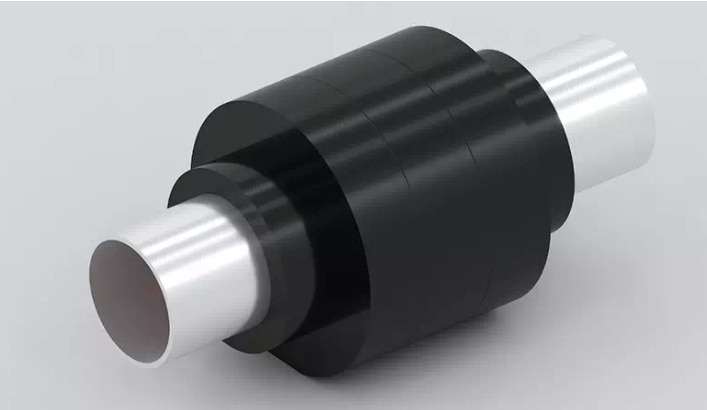

Pre-Insulated Check Valves – Efficient & Ready-to-Install Flow Protection Pre-Insulated Check Valves from Advance are designed to provide reliable backflow prevention while minimizing heat loss and installation effort in HVAC and industrial piping systems. These valves come with factory-applied insulation, eliminating the need for on-site insulation work and ensuring consistent thermal performance. The insulation material used is Polyisocyanurate (PIR) with a density greater than 70 kg/m³, offering excellent thermal efficiency across a wide operating temperature range of -40°C to 120°C. The insulation is protected with a durable HDPE cladding, which safeguards against mechanical damage, moisture ingress, and peeling, thereby extending the lifespan of the valve system. Optional aluminium cladding is also available based on project requirements. From a safety standpoint, the insulation meets Class P fire performance standards as per H5476 Part 5, with low flame spread and self-extinguishing properties. This makes the valves suitable for use in critical environments where fire safety is essential. The design ensures that all mounting bolts are fully enclosed within the insulation, while still allowing standard flanges and fasteners to be used without modification. Bolts are tightened directly on the metal flange surface, maintaining proper joint integrity and simplifying installation. Valve Range: Dual Plate Check Valves Sizes from 50 mm (2”) to 600 mm (24”) These pre-insulated check valves provide a cost-effective, energy-efficient, and low-maintenance solution for modern HVAC systems, district cooling networks, and industrial applications requiring dependable flow control and thermal efficiency.

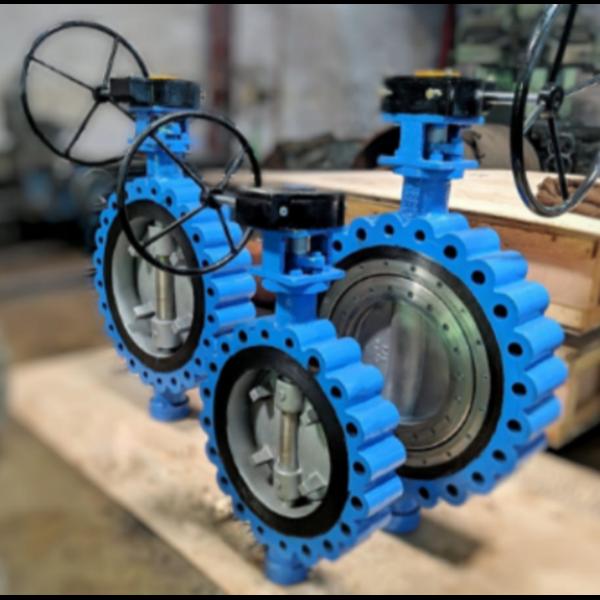

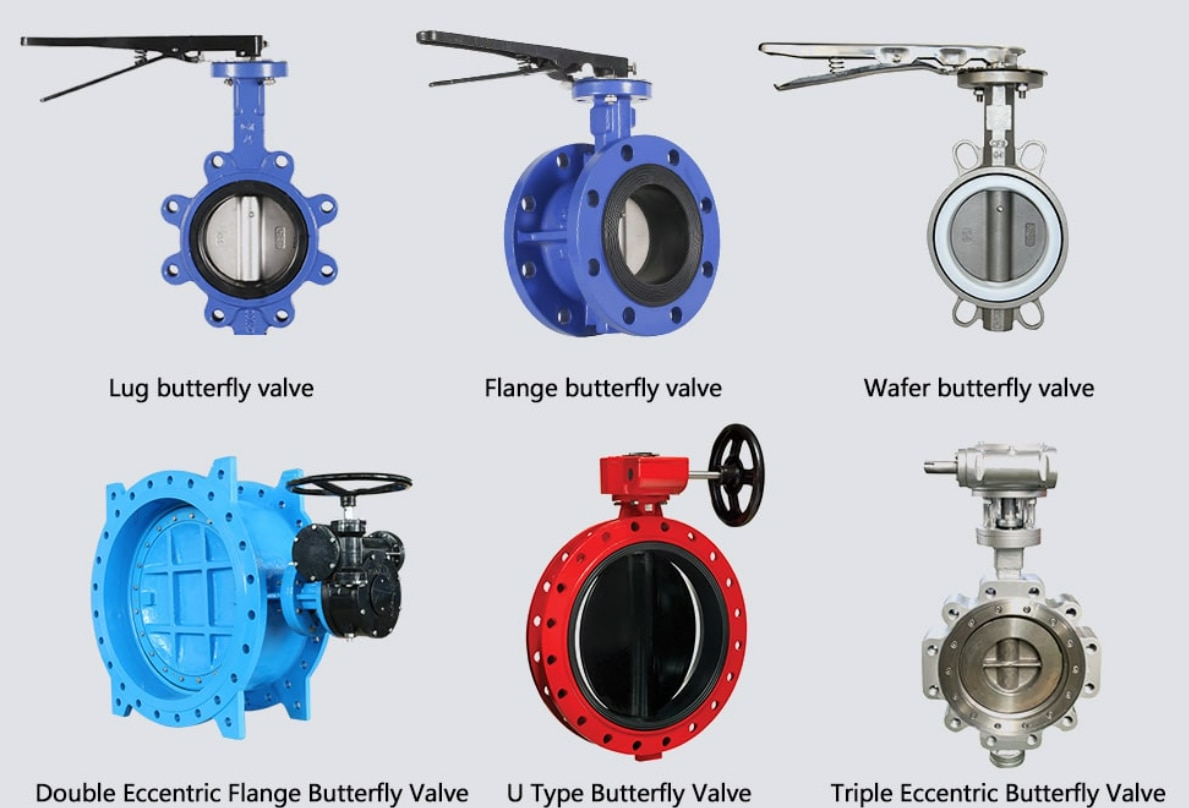

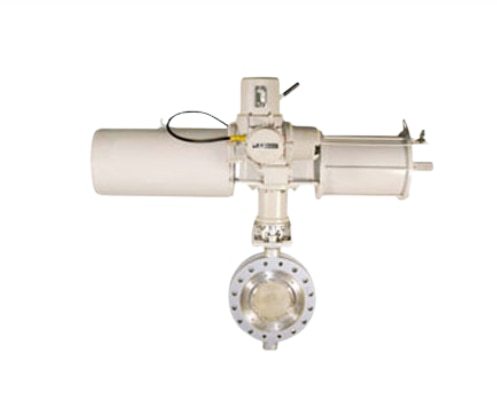

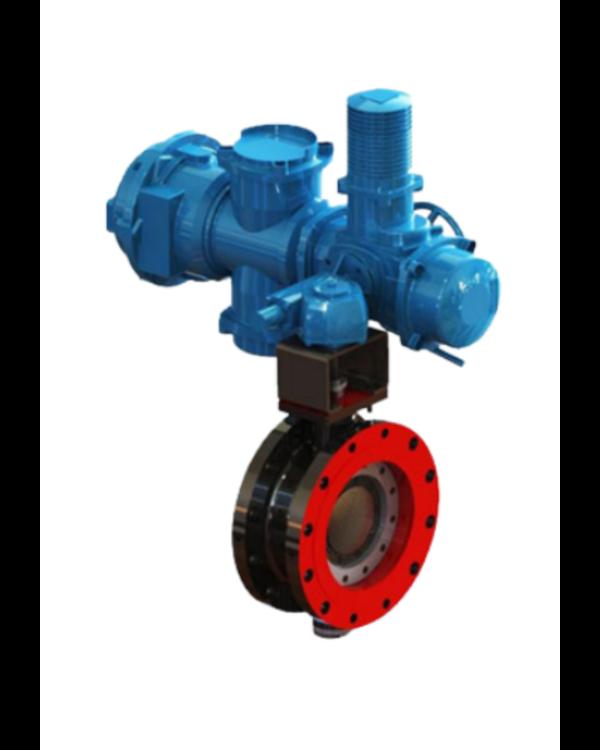

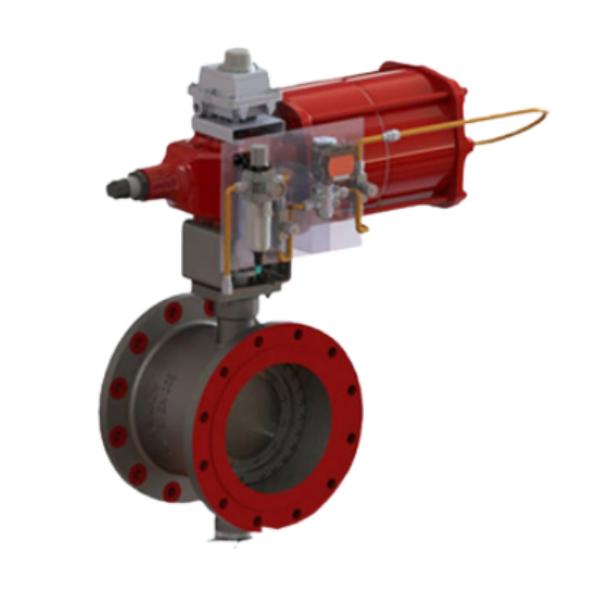

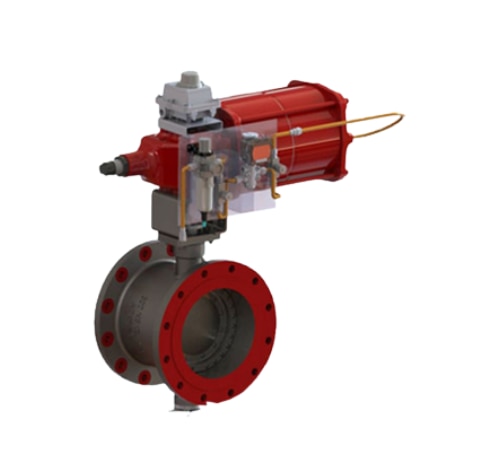

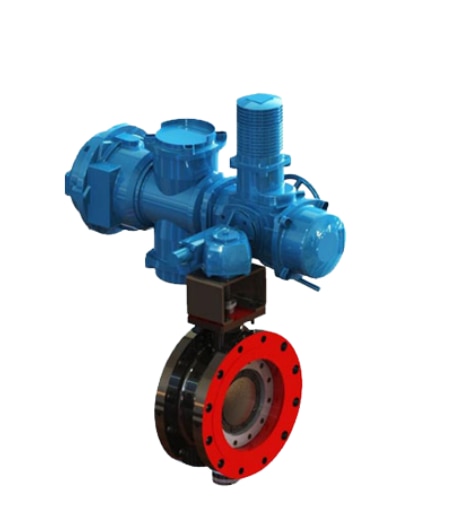

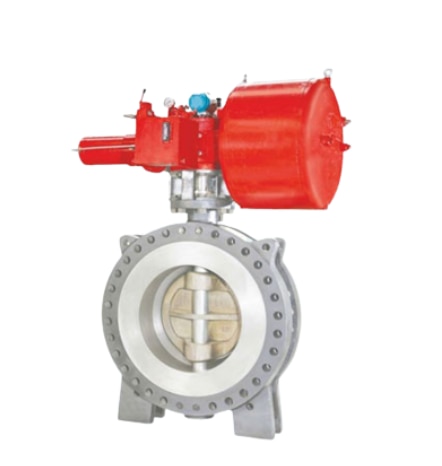

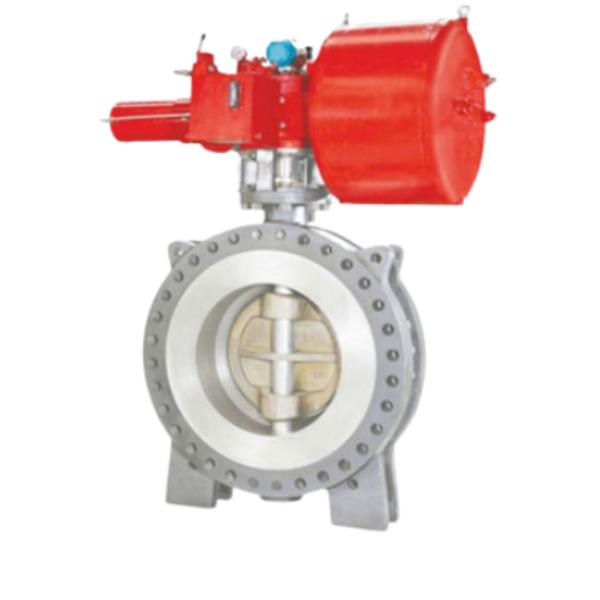

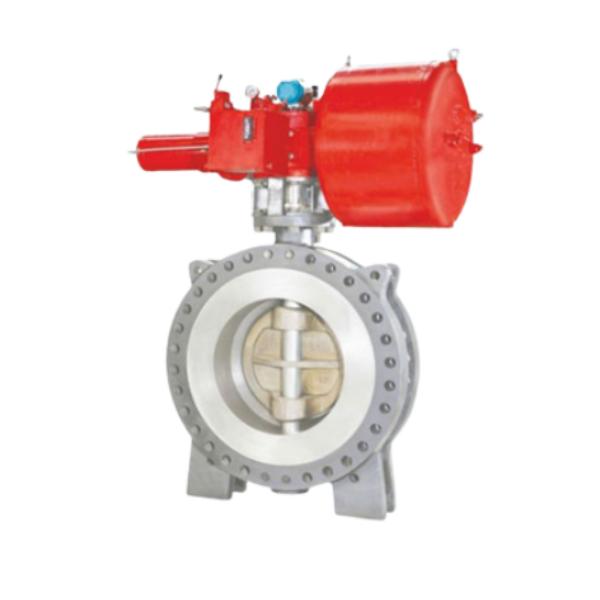

Butterfly Triple Eccentric / Offset Valves (TOBV) – High Performance & Fire-Safe Design Triple Eccentric Butterfly Valves (TOBV) are advanced metal-to-metal seated valves engineered for both precise throttling and reliable positive isolation. Their unique triple offset design eliminates friction between the disc and seat during operation, ensuring smooth movement, minimal wear, and long service life. These valves are increasingly replacing conventional gate and ball valves due to their superior efficiency and compact construction. The Advance BT series features a replaceable seat and seal configuration, which significantly reduces maintenance time and eliminates the need for spare valves. Designed for bi-directional flow, these valves provide tight, leak-proof shut-off and consistent performance even in high-pressure and high-temperature environments. With quarter-turn operation, TOBV ensures quick response, easy handling, and low maintenance. Their robust metal-seated construction makes them intrinsically fire-safe and suitable for critical applications, including cryogenic and high-temperature services. Key Features: Size range: 3” to 100” Pressure ratings: ANSI Class 300, 600 & 900 Temperature range: -196°C (Cryogenic) to 900°C (Fire-safe applications) Metal-to-metal seating for high durability and fire safety Bi-directional flow capability with zero-leakage performance End connections: Wafer, Lugged, Flanged, Butt Weld Special designs: Jacketed, Zero Leakage, Custom configurations Compliance with API 609, API 598, API 607, BS 6364 standards Compact design with low fugitive emissions (FE) Suitable for large capacity and critical industrial applications FAQs 1. Who manufactures triple offset butterfly valves in India? Several reputed manufacturers produce TOBV in India, with Advance Valves being known for high-quality, engineered solutions for industrial and HVAC applications. 2. What is the difference between unidirectional and bidirectional valves? Unidirectional valves allow flow in only one direction, whereas bidirectional valves can handle flow in both directions while maintaining proper sealing. 3. What is a soft seated butterfly valve? A soft seated butterfly valve uses elastomeric materials like EPDM or PTFE for sealing, suitable for lower temperature and pressure applications. 4. What is the difference between a soft seat and a metal seat butterfly valve? Soft seat valves provide tighter sealing at lower pressures but are limited in temperature range. Metal seat valves, like TOBV, can handle extreme temperatures and pressures, making them ideal for critical and harsh environments. Triple Eccentric Butterfly Valves offer a reliable, efficient, and future-ready solution for industries requiring high performance, safety, and durability.
