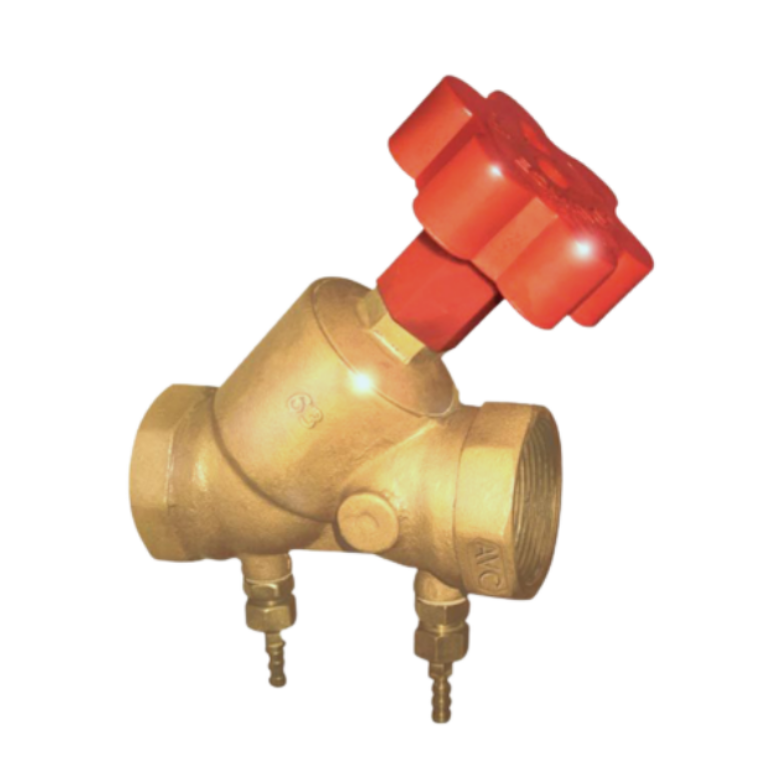

Screwed End Gun Metal Balancing Valve
Screwed End Gun Metal Balancing Valves are precision-engineered flow regulating valves designed for accurate balancing and control of water flow in HVAC, air conditioning, heating, and industrial piping systems. These valves are manufactured using high-quality gun metal construction that offers superior corrosion resistance, long operational life, and reliable performance in demanding applications.
The screwed end connection design ensures easy installation and secure fitting in small and medium-sized pipelines. These valves are widely used for maintaining hydraulic balance, improving system efficiency, and achieving energy savings in chilled water, hot water, and process fluid circulation systems.
Screwed End Gun Metal Balancing Valves are manufactured with advanced engineering standards to deliver accurate flow measurement, low noise operation, tamper-proof settings, and dependable shut-off performance.
Features of Screwed End Gun Metal Balancing Valves
Precise double regulation for accurate flow balancing
Tamper-proof setting with handwheel or lock shield
Positive shut-off capability
Low flow-noise emission
PTFE sealing for leak-proof performance
Threaded gun metal body construction
Corrosion-resistant and durable design
Available with or without Drain Cocks
Available with or without Pressure Test Cocks
Eliminates the need for separate flow measuring devices
Easy installation and maintenance
Suitable for HVAC and industrial fluid systems
Sizes available up to 2 inches
Exceeds IS 778 – 1984 standards
Applications of Screwed End Gun Metal Balancing Valves
These valves are commonly used in:
HVAC systems
Chilled water circulation systems
Hot water systems
Central air conditioning plants
Commercial buildings
Industrial fluid handling systems
Boiler systems
Water balancing applications
Energy-efficient piping networks
Pump balancing systems
Technical Specifications
Specification Details
Product Name Screwed End Gun Metal Balancing Valve
Body Material Gun Metal
Connection Type Screwed / Threaded End
Valve Type Double Regulating Balancing Valve
Size Range Up to 2 Inches
Sealing Material PTFE
Operation Manual
Standard IS 778 – 1984
Media Water & Non-Corrosive Fluids
Application Flow Balancing & Regulation
Software & Services
Advance also offers advanced software and system balancing services designed to work with Handheld Digital Differential Pressure Meters for accurate flow calculation and efficient system balancing.
Advance Flow Computation Software
The Advance Flow Computation Software is specially designed for all Advance Make Balancing Valves. This software enables site engineers and technicians to calculate the exact flow of screwed end balancing valves and other balancing valve models quickly and accurately.
The software can be easily installed on Windows-based laptops and desktops and is highly useful during commissioning, maintenance, and balancing operations.
Working Process
To determine the flow rate, the engineer needs to:
Select the valve model and size
Enter the Turns/Angle setting of the valve
Input the differential pressure reading from the Digital Differential Pressure Meter or Mercury Meter
The software then calculates the accurate flow value for proper system balancing.
Benefits of Advance Flow Computation Software
Accurate and quick flow calculations
Easy valve selection and balancing
Improves HVAC system efficiency
Reduces commissioning time
Supports energy-saving operations
User-friendly Windows-based interface
Compatible with Advance Balancing Valves
Helps maintain hydraulic balance in piping systems
