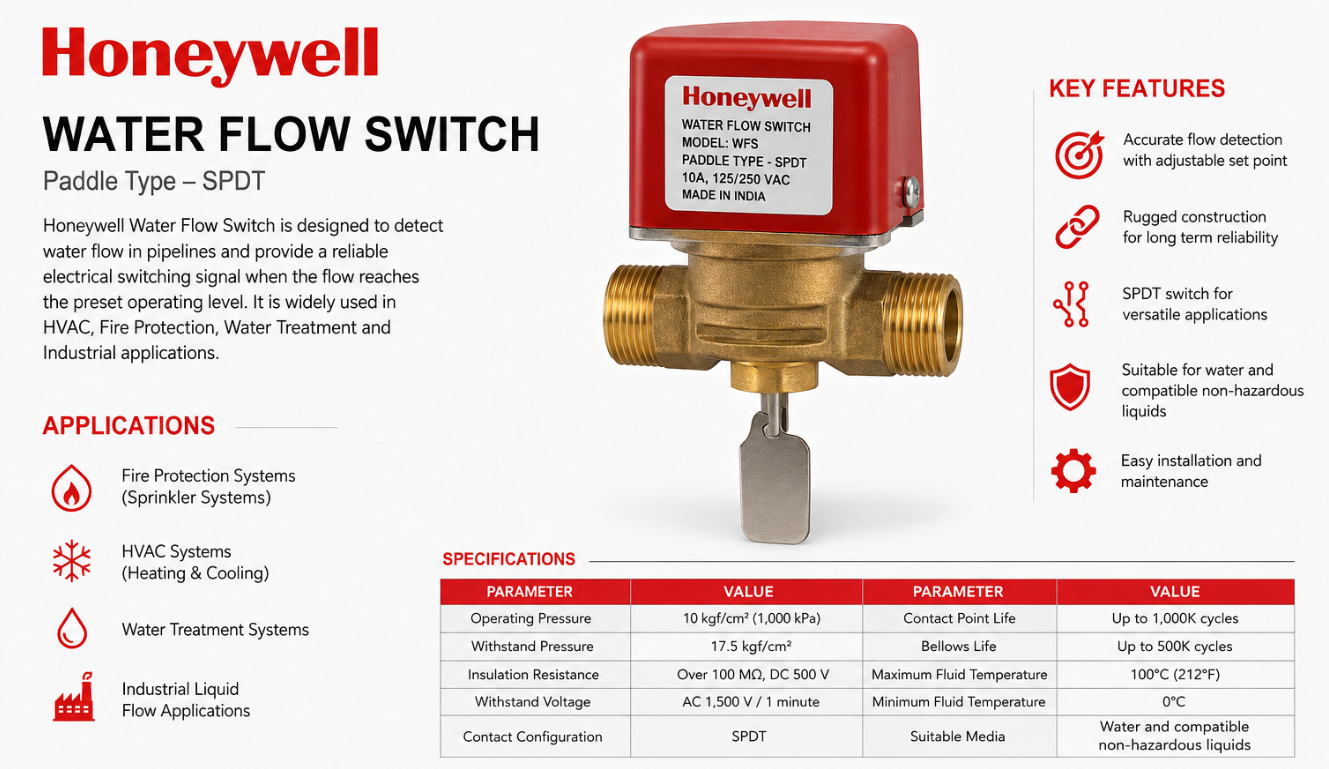

Honeywell Water Flow Switch – Application, Features, Specifications & FAQs
A Honeywell Water Flow Switch is designed to detect water flow in pipelines and provide a reliable electrical switching signal when the flow reaches the preset operating level. Its robust construction and dependable flow-sensing mechanism make it suitable for applications where accurate and consistent water-flow monitoring is required.
NAMOKAR ENTERPRISES supplies Honeywell flow switches and valve solutions for commercial, industrial, HVAC, fire protection, and water-management applications in Delhi.
Honeywell Water Flow Switch Application
The Honeywell Water Flow Switch is used to monitor water movement through a pipeline. When the water flow exceeds or falls below the adjusted flow rate, the switch changes its electrical contact position, allowing it to operate connected control or alarm circuits.
These flow switches are particularly useful in systems where confirmation of water movement is important for proper operation.
Typical applications include fire sprinkler systems, HVAC installations, water-treatment systems, pumping systems, and industrial water-flow applications.
Key Features of Honeywell Water Flow Switch
Honeywell water flow switches are designed for reliable operation in demanding flow-monitoring applications. The paddle-type sensing mechanism responds to water movement inside the pipeline and operates the switch according to the adjusted flow condition.
The SPDT configuration allows the device to switch between two electrical circuits. This provides flexibility for connecting the flow switch to control, monitoring, or alarm systems.
The rugged construction also makes it suitable for installations where long-term reliability is important.
Applications
Fire Protection Systems
A Honeywell Water Flow Switch can be used in sprinkler piping to detect water movement and provide a signal to the associated fire alarm or monitoring system.
HVAC Systems
Flow switches can help monitor water circulation in heating and cooling systems, supporting proper operation of pumps and associated equipment.
Water Treatment Systems
The switch can be used in compatible water-treatment applications where monitoring water movement is required.
Industrial Applications
Honeywell flow switches can be used in selected industrial liquid-flow applications where the fluid, pressure, temperature, and environmental conditions fall within the specified operating limits.
Honeywell Water Flow Switch Specifications
SpecificationDetailsBrandHoneywellProduct TypePaddle-Type Water Flow SwitchContact ConfigurationSPDTOperating Pressure10 kgf/cm² (1,000 kPa)Withstand Pressure17.5 kgf/cm²Insulation ResistanceOver 100 MΩ at DC 500 VWithstand VoltageAC 1,500 V / 1 minuteContact Point LifeUp to 1,000K cyclesBellows LifeUp to 500K cyclesMaximum Fluid Temperature100°C (212°F)Minimum Fluid Temperature0°CSuitable MediaWater and compatible non-hazardous liquidsSensing MechanismPaddle Type
Technical note: The original specification supplied for this product contains an apparent inconsistency for the withstand-pressure conversion. The final value should be checked against the applicable Honeywell product datasheet before publishing.
Installation Considerations
The Honeywell Water Flow Switch should be installed according to the manufacturer's installation requirements and within the specified pressure and temperature limits.
It is intended for water and compatible liquids that will not damage the wetted materials. It should not be used with hazardous fluids or in hazardous atmospheres unless the specific product is approved for that environment.
For outdoor installations, appropriate protection should be provided against rain, splashing water, and direct weather exposure.
The product should not be used on lines carrying liquids below 0°C.
Why Choose Honeywell Water Flow Switch?
Honeywell is a well-established name in control, automation, and building-system technologies. A Honeywell Water Flow Switch can be a suitable choice when dependable flow detection and reliable switching performance are required.
For businesses and contractors looking for a Honeywell Water Flow Switch Dealer in Delhi, NAMOKAR ENTERPRISES can assist with product selection, availability, and application requirements.
Frequently Asked Questions
What is a Honeywell Water Flow Switch?
A Honeywell Water Flow Switch is a flow-sensing device used to detect water movement inside a pipeline and provide an electrical switching signal when the flow reaches the specified operating condition.
How does a Honeywell Water Flow Switch work?
The paddle mechanism responds to water movement inside the pipe. When the flow reaches the adjusted operating level, the paddle operates the internal switching mechanism and changes the electrical contact position.
What does SPDT mean in a water flow switch?
SPDT means Single Pole Double Throw. It allows the switch to change between two electrical circuits depending on the detected flow condition.
Where are Honeywell Water Flow Switches used?
They can be used in applications such as fire protection systems, HVAC water circulation, water-treatment systems, pumping systems, and compatible industrial liquid-flow installations.
Can Honeywell Water Flow Switches be used in fire sprinkler systems?
Suitable Honeywell flow-switch models can be used for water-flow detection in fire protection applications. The exact model should be selected according to the requirements and approvals of the fire protection system.
What is the maximum fluid temperature?
For the WFS specification provided here, the maximum fluid temperature is 100°C (212°F). Always verify the temperature rating of the specific Honeywell model before installation.
Can the flow switch be used with liquids other than water?
Compatible non-hazardous liquids may be suitable, provided they do not adversely affect the materials used in the switch and remain within the specified operating conditions.
Can the Honeywell Water Flow Switch be installed outdoors?
Suitable models may be installed outdoors, but the switch should be protected from direct weather exposure, rain, and splashing water.
Can it be used below 0°C?
The supplied WFS specifications state that it should not be used on lines carrying liquids below 0°C.
Is a Water Flow Switch a safety device?
A flow switch is primarily an operating control. If failure of the control could result in personal injury or property damage, an independent safety device or supervisory system should be provided.
Where can I buy a Honeywell Water Flow Switch in Delhi?
NAMOKAR ENTERPRISES supplies Honeywell flow-control products in Delhi and can assist customers with product availability and selection based on their application requirements.
Buy Honeywell Water Flow Switch in Delhi
If you are looking for a Honeywell Water Flow Switch in Delhi, contact NAMOKAR ENTERPRISES for product availability, technical information, and assistance in selecting the appropriate model for your application.
Choosing the correct flow switch requires consideration of pipe size, flow rate, pressure, temperature, fluid compatibility, and electrical requirements. Selecting the appropriate Honeywell model helps ensure reliable flow monitoring and dependable system operation.
