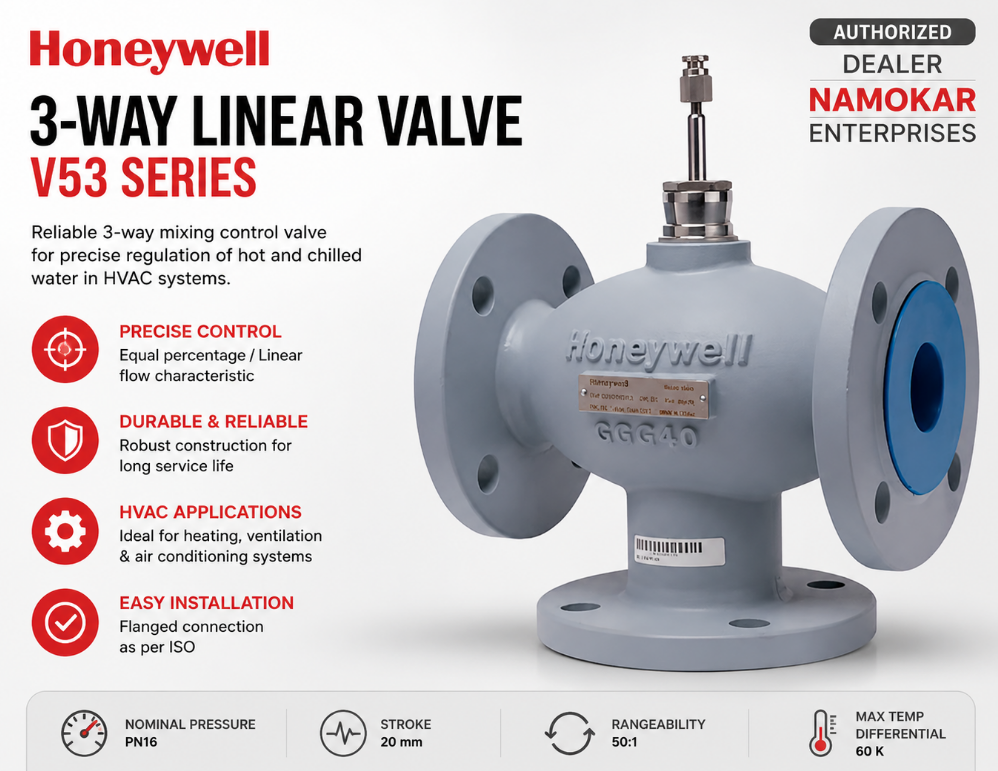

Honeywell V53 Series 3-Way Linear Valve
Reliable 3-Way Mixing Valve for HVAC Applications
The Honeywell V53 Series 3-Way Linear Valve is designed for precise water-flow control in heating, ventilation, and air-conditioning systems. Its three-way mixing configuration helps regulate water flow and temperature, making it suitable for HVAC applications where dependable and accurate control is required.
The valve combines a robust cast-iron body with stainless-steel internal components and a flanged connection design for reliable installation in compatible piping systems.
Product Details
Feature Specification
Valve Type 3-Way Mixing
Action Stem up to close port A-AB
Nominal Pressure PN16
Flow Characteristic Equal Percentage (A-AB); Linear (B-AB)
Stroke 20 mm
Rangeability 50:1
Body Material Cast Iron (GG25)
Trim Material Stainless Steel Seat (Skirt Guided) and Stem
Packing Spring-Loaded PTFE Cone
Connection Flanged per ISO
Maximum Temperature Differential 60 K for alternating hot/cold water use
Key Features
3-Way Mixing Design
The V53 Series is designed as a 3-way mixing valve, allowing water flow from different ports to be regulated according to the requirements of the HVAC system.
Precise Flow Control
The valve provides an equal percentage flow characteristic on A-AB and a linear characteristic on B-AB, supporting controlled flow regulation across different operating conditions.
Durable Construction
The valve body is manufactured from cast iron (GG25), while the trim incorporates a stainless-steel seat and stem. This combination provides a robust construction suitable for compatible HVAC water applications.
20 mm Stroke
With a 20 mm stroke, the valve provides controlled linear movement for regulating the flow through the connected ports.
High Rangeability
The 50:1 rangeability provides a broad control range, helping the valve respond to varying flow requirements.
Flanged Connection
The V53 Series uses a flanged connection according to ISO, allowing it to be integrated into compatible flanged piping systems.
Applications
The Honeywell V53 Series 3-Way Linear Valve is suitable for HVAC and water-flow control applications, including:
Air handling units
Heating systems
Chilled-water systems
HVAC water circuits
Temperature-control systems
Building management systems
Hot and cold water applications
The valve is particularly useful where controlled mixing of hot and cold water is required.
Temperature Consideration
The specified maximum temperature differential is 60 K for alternating hot/cold water use. The valve should be selected and operated within the manufacturer's specified temperature, pressure, and fluid compatibility limits.
Frequently Asked Questions
What is the Honeywell V53 Series?
The Honeywell V53 Series is a 3-way linear mixing valve designed for controlled water-flow regulation in HVAC and temperature-control applications.
What type of valve is the V53 Series?
It is a 3-way mixing valve with linear stem movement.
What is the nominal pressure rating?
The nominal pressure rating is PN16.
What is the stroke of the V53 valve?
The specified stroke is 20 mm.
What is the rangeability of the V53 Series?
The valve has a specified 50:1 rangeability, providing a broad controllable flow range.
What is the flow characteristic of the valve?
The flow characteristic is equal percentage for A-AB and linear for B-AB.
What material is used for the valve body?
The valve body is made from cast iron (GG25).
What material is used for the trim?
The trim includes a stainless-steel seat and stainless-steel stem, with the seat being skirt guided.
What type of packing does the valve use?
The V53 Series uses spring-loaded PTFE cone packing.
How is the Honeywell V53 valve connected to a pipeline?
The valve uses a flanged connection according to ISO.
What is the maximum temperature differential?
The specified maximum temperature differential is 60 K for alternating hot/cold water use.
Where is the Honeywell V53 Series commonly used?
It is suitable for HVAC systems, air-handling units, heating and chilled-water circuits, and other compatible water-flow control applications.
Where can I get more information about Honeywell HVAC controls?
You can refer to Honeywell's HVAC field-device information for additional product and application details.
Honeywell HVAC Field Devices – Know More
Honeywell V53 Series for HVAC Flow Control
The Honeywell V53 Series 3-Way Linear Valve offers a combination of controlled flow characteristics, robust construction, PN16 pressure rating, and ISO flanged connections. Its specifications make it a practical option for compatible HVAC water-control applications requiring reliable three-way mixing.
For the correct valve selection, always verify the required valve size, flow capacity, pressure, temperature conditions, actuator compatibility, and exact model number before installation.
