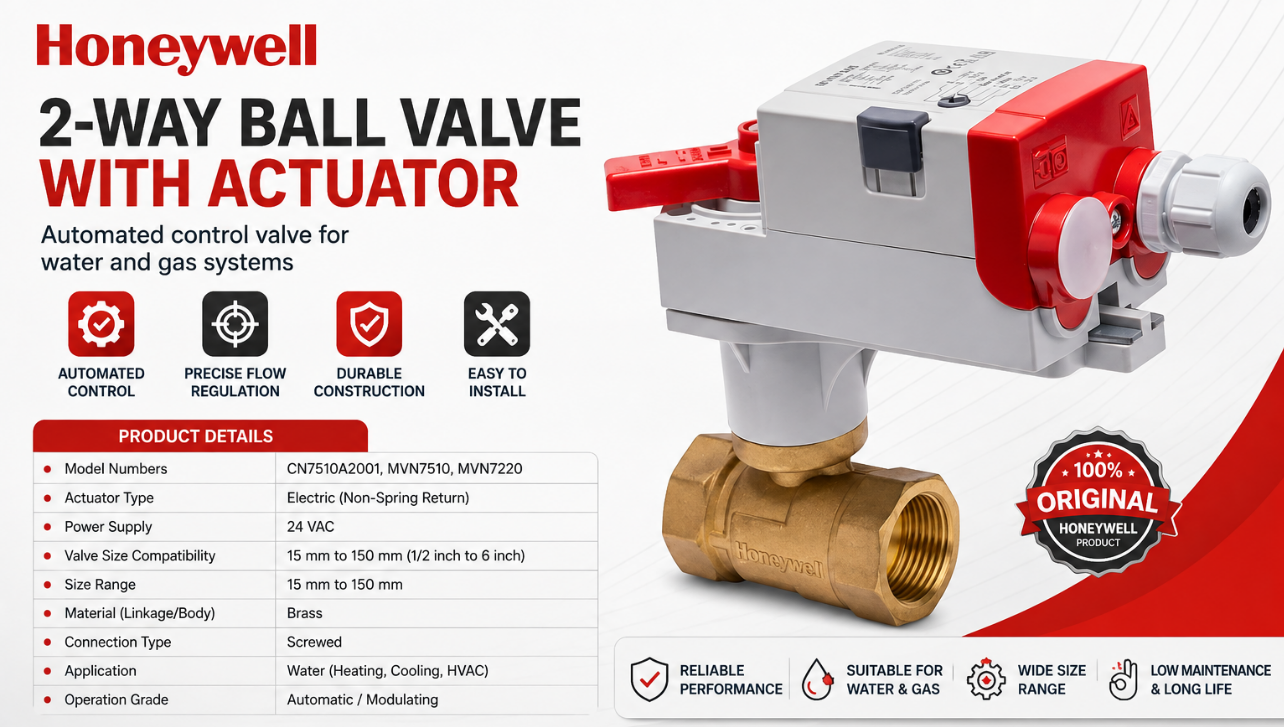

Honeywell 2-Way Ball Valve With Actuator
Automated Flow Control for Water and HVAC Systems
The Honeywell 2-Way Ball Valve with Actuator is designed for automated water-flow control in heating, cooling, and HVAC systems. Combining a durable ball valve with an electric actuator allows the valve to be controlled automatically according to the requirements of the connected control system.
This type of motorized valve is suitable for applications where dependable and responsive flow regulation is required in commercial buildings, HVAC installations, and other compatible water systems.
Product Details
Feature Detail
Brand Honeywell
Model Numbers CN7510A2001, MVN7510, MVN7220
Valve Type 2-Way Ball Valve with Actuator
Actuator Type Electric, Non-Spring Return
Power Supply 24 VAC
Valve Size Compatibility 15 mm to 150 mm (1/2 inch to 6 inch)
Size Range 15 mm to 150 mm
Material – Linkage/Body Brass
Connection Type Screwed
Application Water, Heating, Cooling, HVAC
Operation Automatic / Modulating
Key Features
Automated Flow Control
The electric actuator allows the valve to operate automatically, helping regulate water flow according to the requirements of the HVAC or building management system.
24 VAC Electric Actuator
The actuator operates on a 24 VAC power supply, making it suitable for integration with compatible HVAC control systems.
Non-Spring-Return Operation
The non-spring-return actuator maintains its controlled position through the actuator mechanism rather than returning automatically by spring action.
Brass Construction
The brass valve body and linkage provide a robust construction for compatible water-flow applications and everyday HVAC service.
Wide Size Range
The specified size compatibility ranges from 15 mm to 150 mm (1/2 inch to 6 inches), providing options for different piping requirements.
Applications
The Honeywell 2-Way Ball Valve with Actuator can be used in a variety of water-flow control applications, including:
HVAC systems
Heating systems
Cooling systems
Chilled-water systems
Hot-water systems
Air-conditioning systems
Building management systems
Commercial building services
Automated water-flow systems
The exact valve and actuator combination should be selected according to pipe size, flow requirements, pressure, temperature, and control-system specifications.
How Does a Honeywell 2-Way Ball Valve Work?
A 2-way ball valve controls the flow of fluid through a single inlet and outlet. The attached electric actuator moves the valve according to the control signal from the connected HVAC or building-management system.
Depending on the selected configuration, the actuator can provide automatic or modulating control, helping maintain the desired water-flow conditions within the system.
Why Choose a Honeywell Motorized Ball Valve?
A motorized ball valve provides an efficient way to automate flow control without requiring manual operation. The combination of a Honeywell actuator and ball valve provides a practical solution for systems that require automatic adjustment of water flow.
For HVAC contractors, facility managers, system integrators, and maintenance teams, selecting the correct valve size and actuator combination is important for reliable system performance.
Frequently Asked Questions
What is a Honeywell 2-Way Ball Valve With Actuator?
It is an automated valve assembly consisting of a two-way ball valve and an electric actuator. The actuator controls the valve position to regulate water flow through the system.
What is the power supply of the actuator?
The specified power supply is 24 VAC.
Is the actuator spring return?
No. The specified actuator type is electric non-spring return.
What are the model numbers?
The supplied model numbers are CN7510A2001, MVN7510, and MVN7220. The exact model and valve combination should be confirmed before ordering.
What sizes are available?
The specified valve size range is 15 mm to 150 mm, equivalent to approximately 1/2 inch to 6 inches, depending on the particular configuration.
What material is the valve body?
The supplied specification lists brass for the linkage/body.
What type of connection does the valve use?
The specified connection type is screwed.
Where is the Honeywell 2-way ball valve used?
It is designed for compatible water heating, cooling, and HVAC applications, particularly where automated flow control is required.
Is the valve suitable for HVAC systems?
Yes. The valve is specified for heating, cooling, and HVAC water applications.
Does the valve provide automatic control?
Yes. The supplied specification identifies the operation as automatic/modulating, subject to the selected actuator and control-system configuration.
What is the difference between a 2-way and 3-way valve?
A 2-way valve controls flow through one inlet and one outlet. A 3-way valve has three ports and can be used for mixing or diverting flow between different piping paths.
How do I select the right Honeywell ball valve?
Consider the pipe size, fluid type, flow rate, operating pressure, temperature, connection type, actuator voltage, control signal, and required operating mode before selecting the valve.
