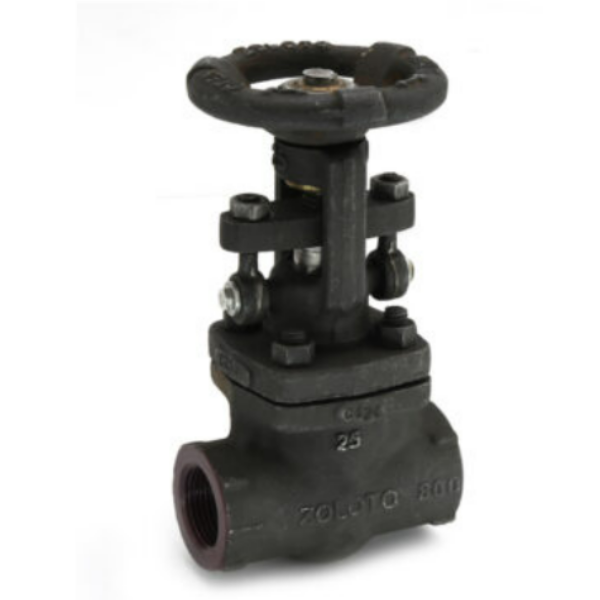

Forged Steel Gate Valve Class 800 (Full Bore)
Forged Steel Gate Valve Class 800 (Full Bore), Article Code 1075A, is a high-pressure industrial isolation valve designed for demanding applications involving steam, oil, gas, petrochemicals, and process industries. Manufactured to international standards, this valve provides reliable shut-off performance, exceptional strength, and long service life under high-pressure and high-temperature operating conditions.
Product Specifications
Product Name: Forged Steel Gate Valve Class 800 (Full Bore)
Article Code: 1075A
Design Standard: API 602 / BS EN ISO 15761 (BS 5352)
Pressure Class: Class 800
Type: Full Bore Gate Valve
Operation: Handwheel Operated
Stem Design: Outside Screw & Yoke (OS& Y), Rising Stem
Bonnet Type: Bolted Bonnet
Body Protection: Phosphated Body and Bonnet for enhanced rust resistance
End Connections
Screwed Female Ends to BSPT / NPT
Socket Weld Ends to ANSI B16.11
Key Features
Forged steel construction for superior strength
Full bore design ensures unrestricted flow
Phosphated body and bonnet provide maximum corrosion resistance
Outside screw and yoke construction for easy position indication
Rising stem design for visual valve status monitoring
Reliable sealing performance under high pressure
Suitable for severe industrial service conditions
Long operational life with low maintenance requirements
Test Pressure
Hydrostatic Test
Shell: 207 Bar (3000 psig)
Seat & Back Seat: 152 Bar (2200 psig)
Pneumatic Test
Seat: 6.9 Bar (100 psig)
Maximum Working Temperature
425°C
Applications
Oil and gas industries
Petrochemical plants
Refineries
Power generation facilities
Steam distribution systems
Chemical processing plants
High-pressure industrial pipelines
Process control systems
Benefits
High Pressure Performance
Designed to withstand Class 800 pressure ratings, ensuring safe and reliable operation in critical applications.
Excellent Corrosion Resistance
Phosphated body and bonnet surfaces offer enhanced protection against rust and environmental exposure.
Full Bore Flow Efficiency
The full port design minimizes pressure drop and ensures maximum flow capacity.
Durable Construction
Forged steel construction delivers superior mechanical strength and resistance to thermal stress.
Why Choose Forged Steel Gate Valve Class 800?
Manufactured to API 602 and BS EN ISO 15761 standards
Suitable for high-pressure and high-temperature service
Reliable shut-off and sealing performance
Rugged forged steel body construction
Ideal for critical industrial process applications
The Forged Steel Gate Valve Class 800 (Full Bore) – Article 1075A is a dependable solution for industries requiring robust, high-performance valves capable of operating efficiently under severe service conditions.
